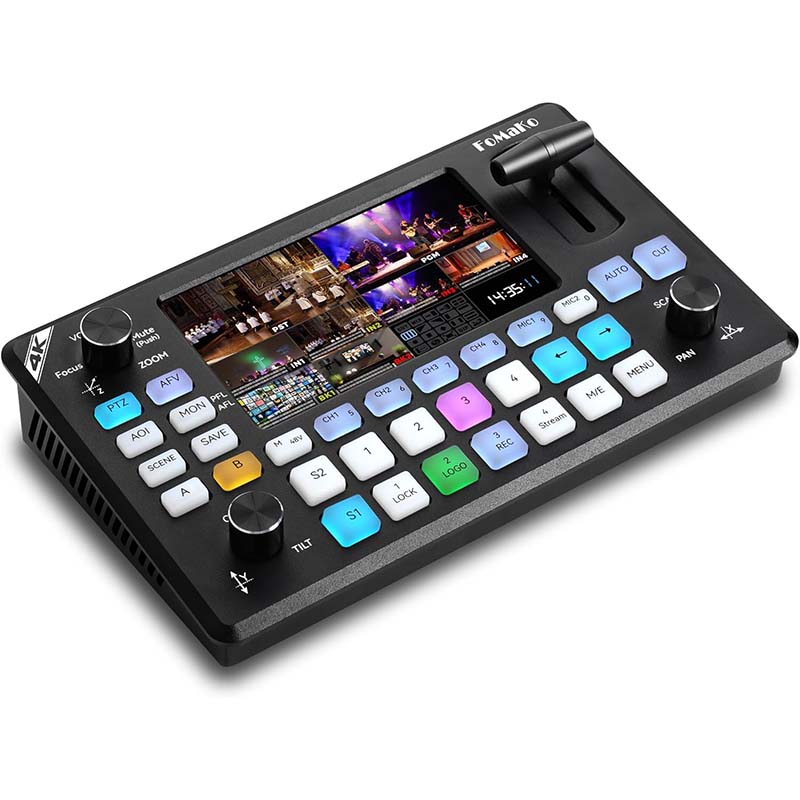

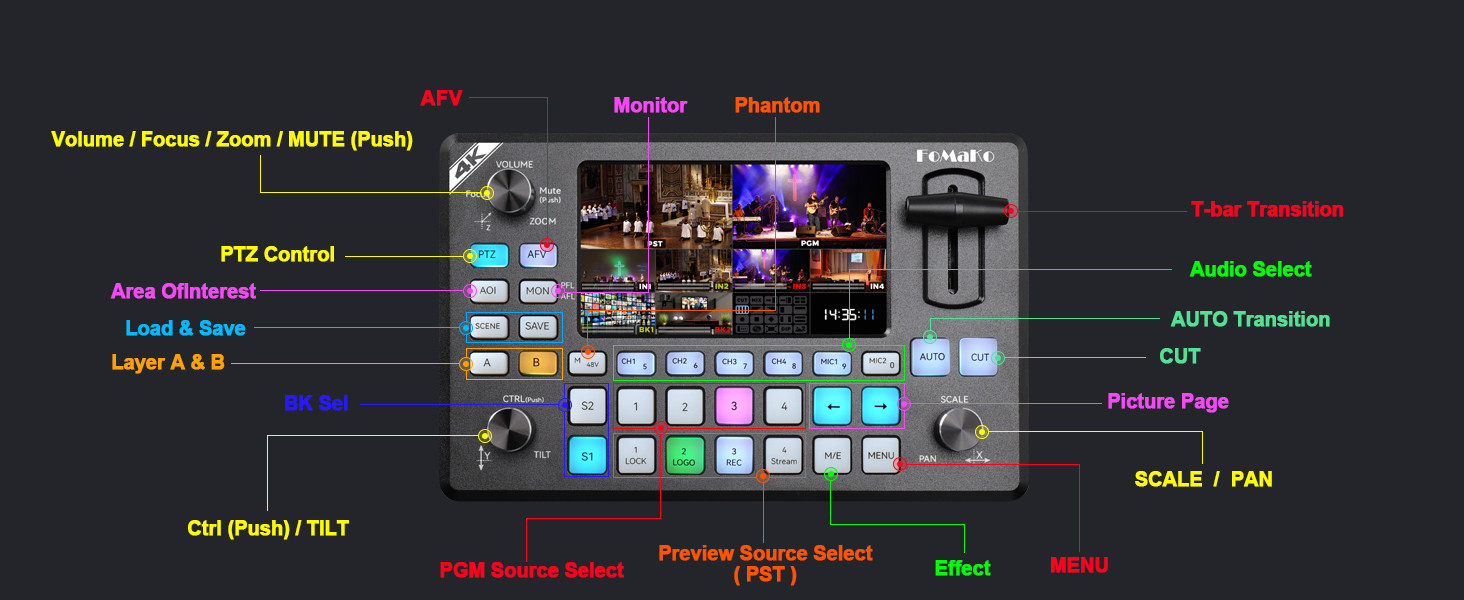

FoMaKo 4K KC602 Video Switcher supports 4K 60fps inputs, 4K loop-through,multi-layer RGB24 video processing, AOI adjust, Image Optimize,Lossless UVC streaming, RTMP IP streaming, VENC hard-encoding record, professional sound card-level audio processing, 4 cameras live broadcasting production, highly integrated and compact AV live streaming switcher, with broadcast level live production by 4 x camera PTZ control simultaneously. Only use 31 buttons, 3 knobs and T-Bar of This Video Switcher panel toglance, empowering seamless live production. Some basic features are below:

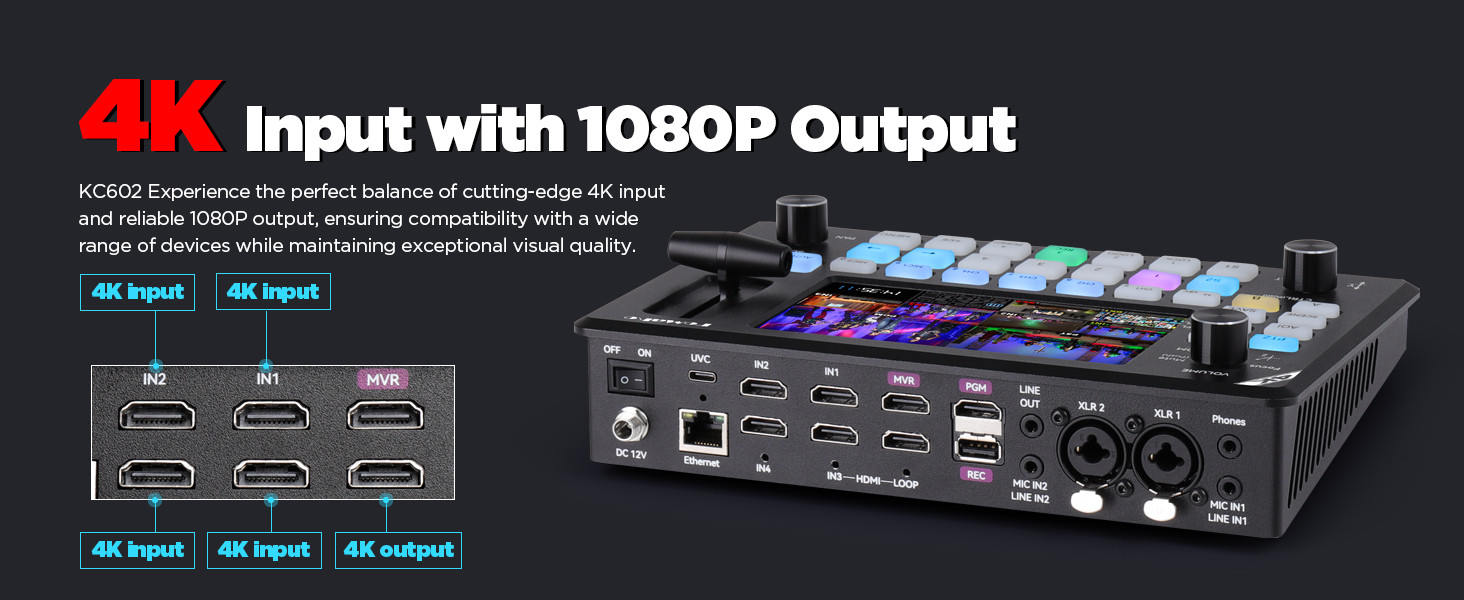

1: 4k Input and 1080P60FPS Output, 4K Loop-Through Output

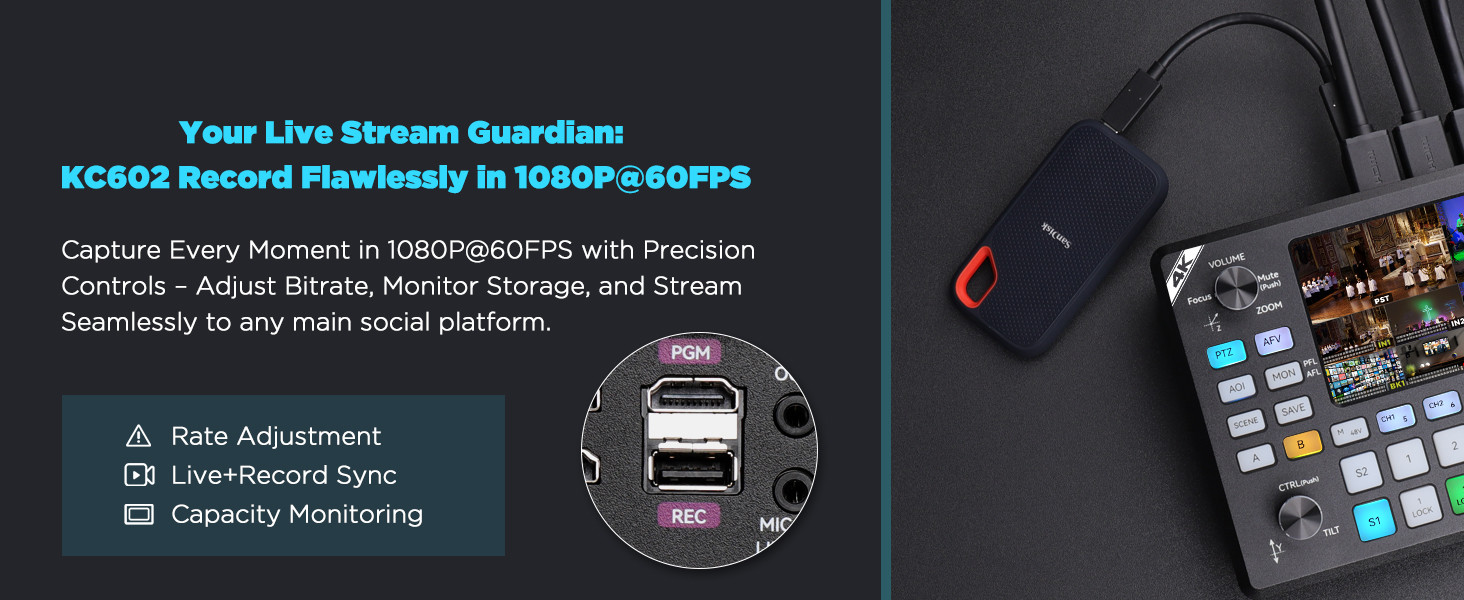

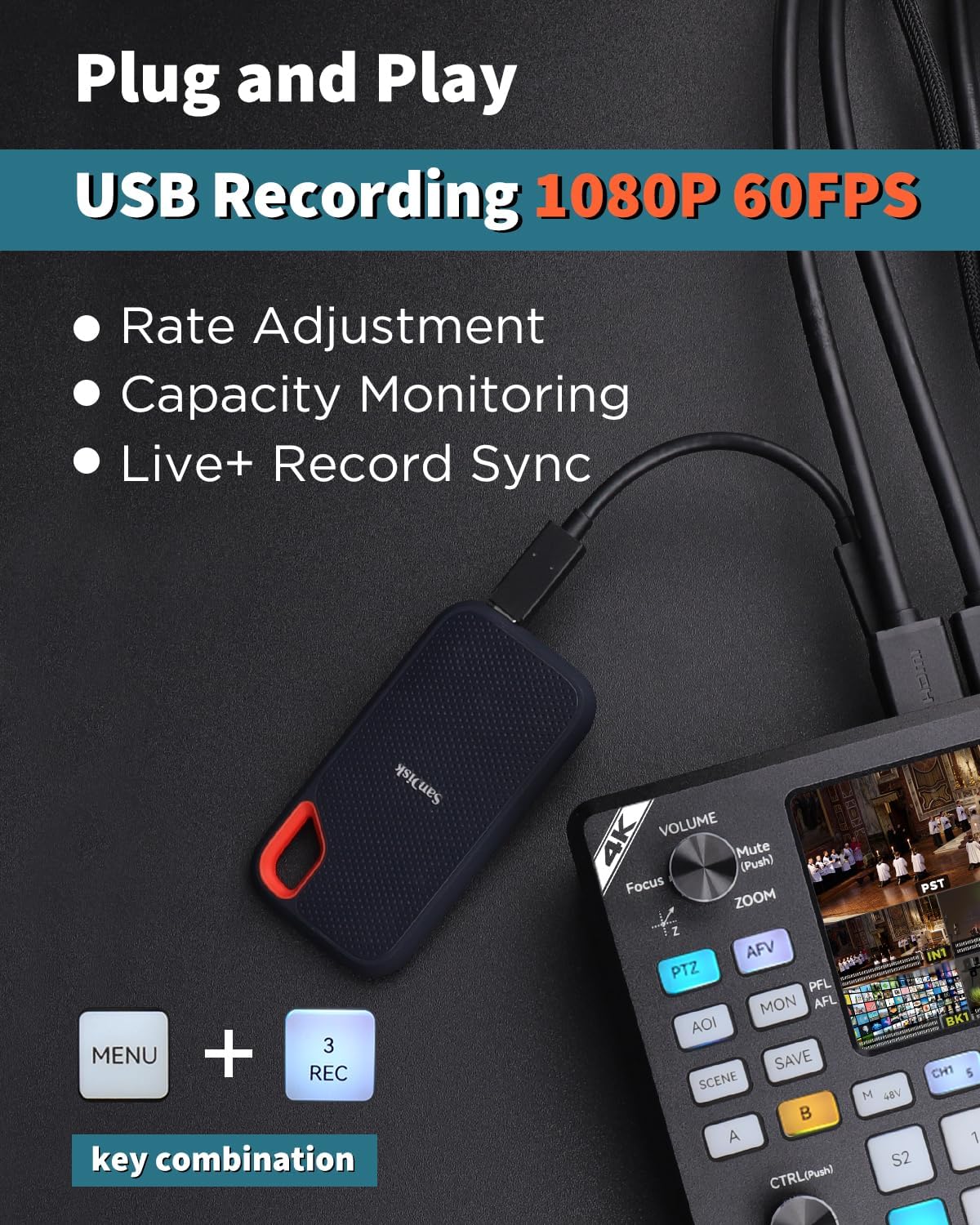

2. 1080p 60fps USB high bit rate recording. USB Record: H.264，Support high bitrate recording，with ISP algorithm supports.
3. Easy to monitor and preview with 5.5” wide gamut FHD LCD.
4. Quad HDMI inputs, Dual HDMI outputs for PGM, One UVC streaming. RGB 24bit HDMI Video in&out.
6. Dual audio inputs, support both Line-in and mic. UVC Caputure: YUY2 16bit UVC capture,with ISP algorithm supports.
7. T-bar switching, more than 20 effects, supports custom effects.
8. Four Power Chroma Keys & Two Luma Keys. Network Stream: H.264/HEVC，three channels RTMP live streaming at the same time at 12mbps high bitrate.
9. Inner media library, supports user defined pictures and imported pictures.
10. Logo with alpha channel, supports PNG format.

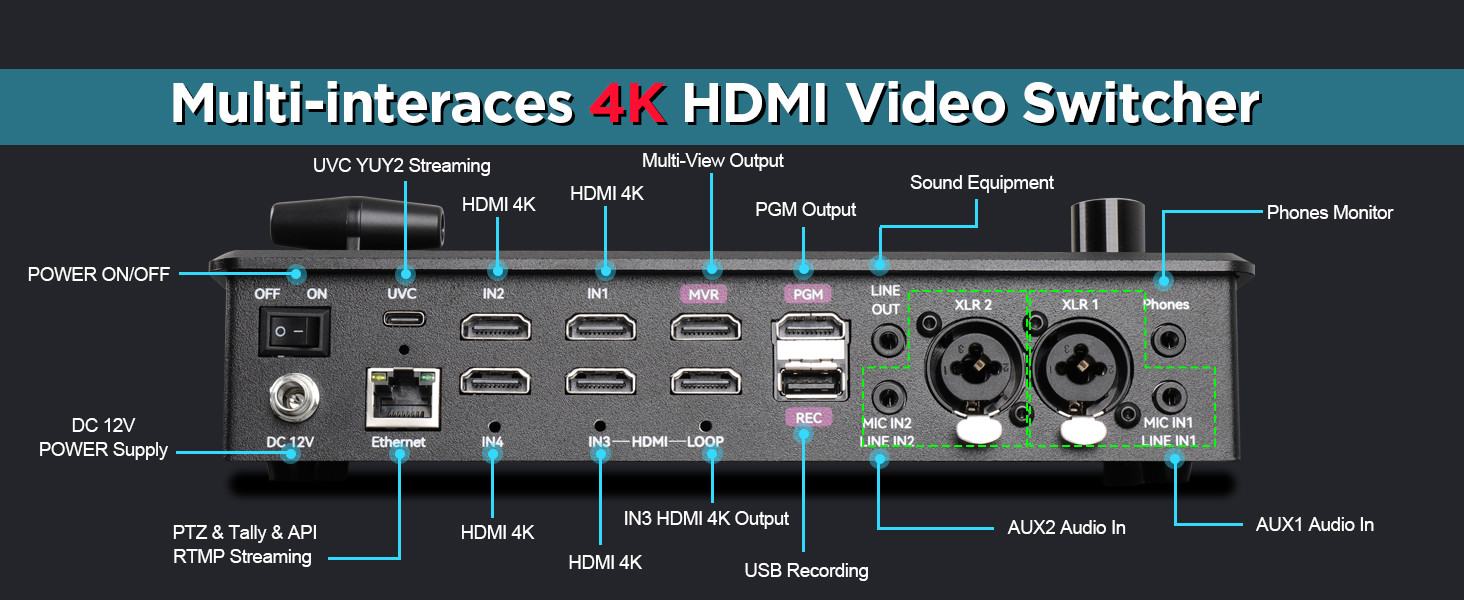

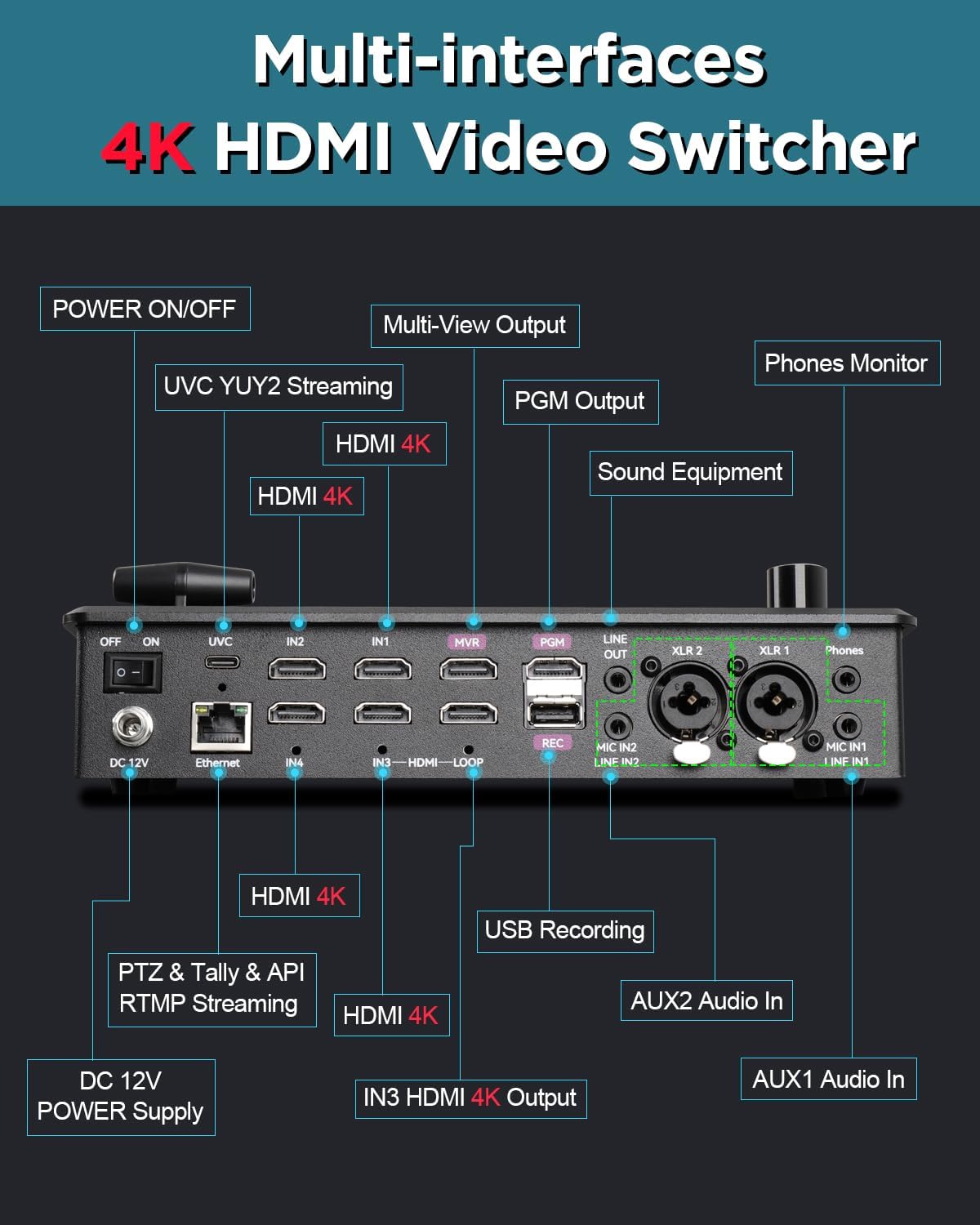

| Connections | VIDEO | Input | HDMI Type A x 4 (INPUT 1--4), HDCP Supported | ||||
| Output (PGM) | HDMI Type A x 1 (PGM OUT) | ||||||
| Output (MVR) | HDMI Type A x 1 (MULTI-VIEW OUT) | ||||||

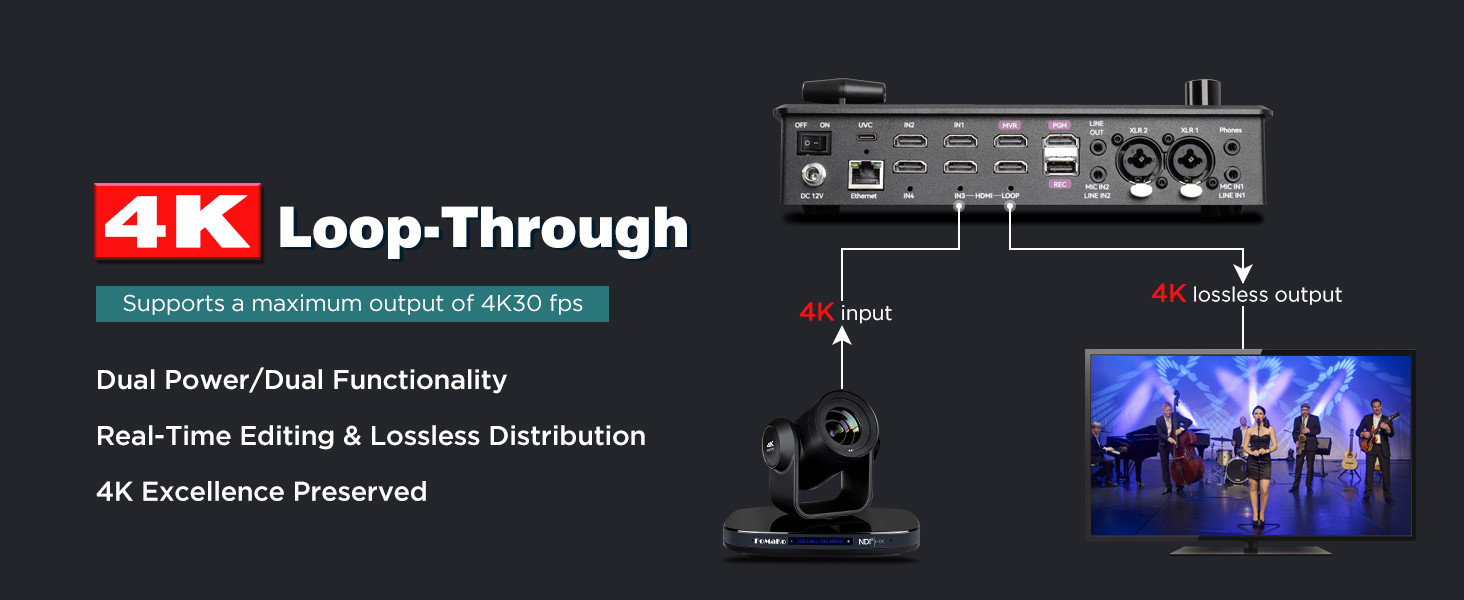

| Output (LOOP) | HDMI Type A x 1 (IN3 LOOP) | ||||||
| UVC Streaming | USB3.0 Type-C x 1, YUY2 with image optimize, Locking Screw | ||||||
| IP Streaming | RJ45 x 1 , RTMP Streaming、RTMPS Streaming | ||||||
| Recording Output | USB2.0 Type A x 1 | ||||||
| Audio | Input | XLR, 1/4-inch TRS phone x 2, balanced, phantom power (DC 48 V, 10 mA Max) | |||||
| 3.5mm TRS phone type x 2, Mic In / Line In Supported | |||||||
| Output | 3.5mm TRS phone type x 2, Phones / Line Out | ||||||

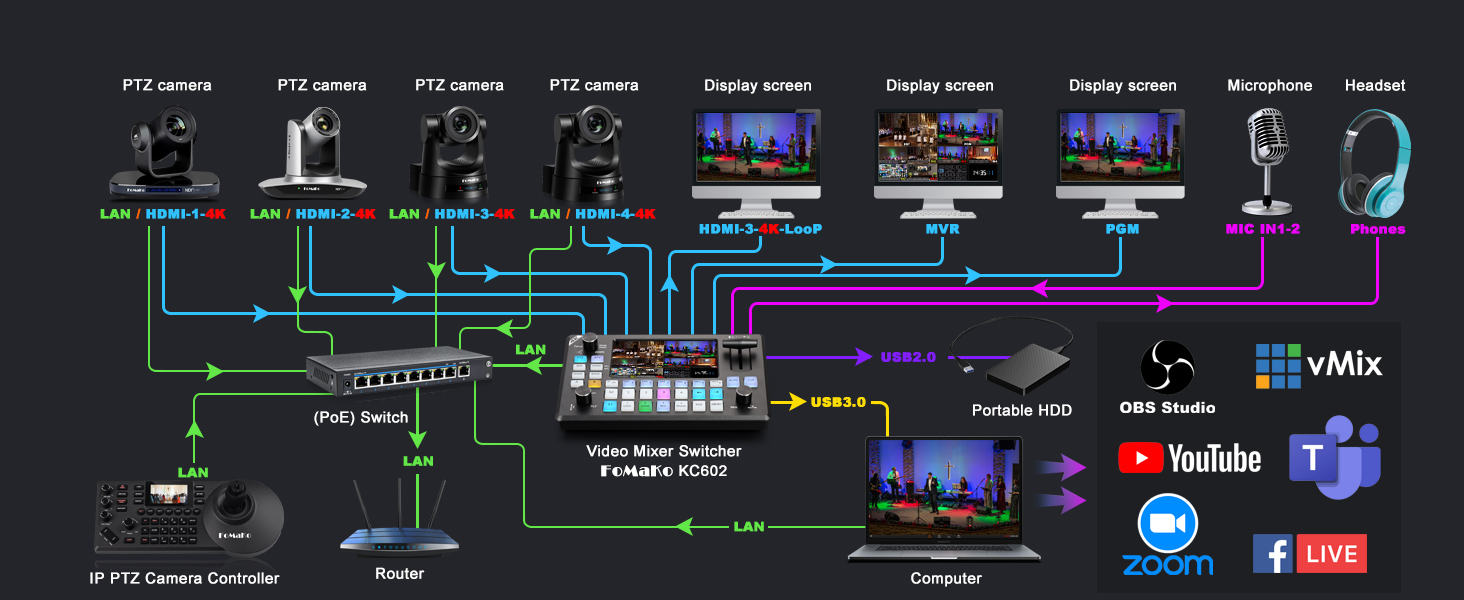

| Communication | RJ45 | 100/1000 BaseT x 1, PTZ / Tally / API Remote Control | |||||
| USB Type-C | USB Type-C x 1, Upgrade / Picture Import | ||||||
| Performance | Input & Loop Resolution | HDMI | 2160p 60/59.94/50/30/29.97/25/24/23.98Hz | ||||
| 1080p 60/59.94/50/30/29.97/25/24/23.98Hz | |||||||
| 1080i 60/59.94/50Hz | |||||||
| 720p 60/59.94/50Hz | |||||||
| Output Resolution | HDMI | Up to 1920 x 1080p60 | |||||
| Supported Standards | HDMI | 2.0 | |||||
| USB | 3.0 | ||||||
| H.264 | ITU-T H.264 | ISO/IEC 14496-10 AVC | ||||||
| H.265 | ITU-T H.265 | ISO/IEC 23008-2 HEVC | ||||||

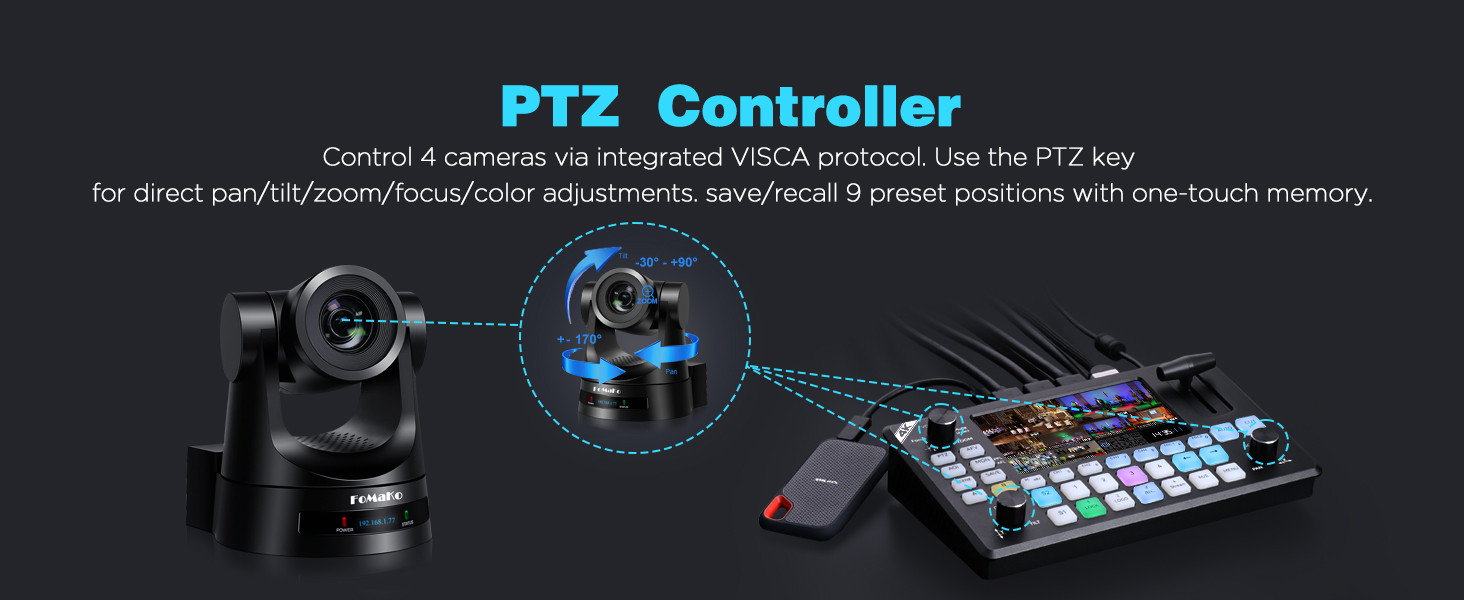

| Supported Protocol | PTZ | VISCA & VISCA Over IP | |||||
| UVC & UAC | Support UVC 1.0 & UAC 1.0 | ||||||
| Video | Video Formats | HDMI 1.3 | HDCP 1.4 | |||||
| Video Sampling | RGB 24bit (HDMI IN & OUT) | ||||||
| UVC Color Space | YUY2 (USB3.0) with image optimize | ||||||
| Video Latency | 4 frames | ||||||
| Audio | Line In Delay | up to 8 frames | |||||
| Audio Formats | HDMI: Linear PCM, 16 bits/48 KHz, 2 ch | ||||||
| USB: Linear PCM, 16 bits/48 KHz, 2 ch | |||||||
| Record/Storage | Disk Formats | FAT32(≤32 GB) | exFAT(64GB~2T) | |||||
| Recording Formats | MP4 | ||||||
| Power Requirements | Input Voltage | DC 12V/3A | |||||
| Max Power | 36W | ||||||
| Compatability | Power Socket, Ф5.5 x 2.1mm | ||||||
| Operational Environment | Temperature | 0℃~60℃ | |||||
| Humidity | 10%~85% | ||||||

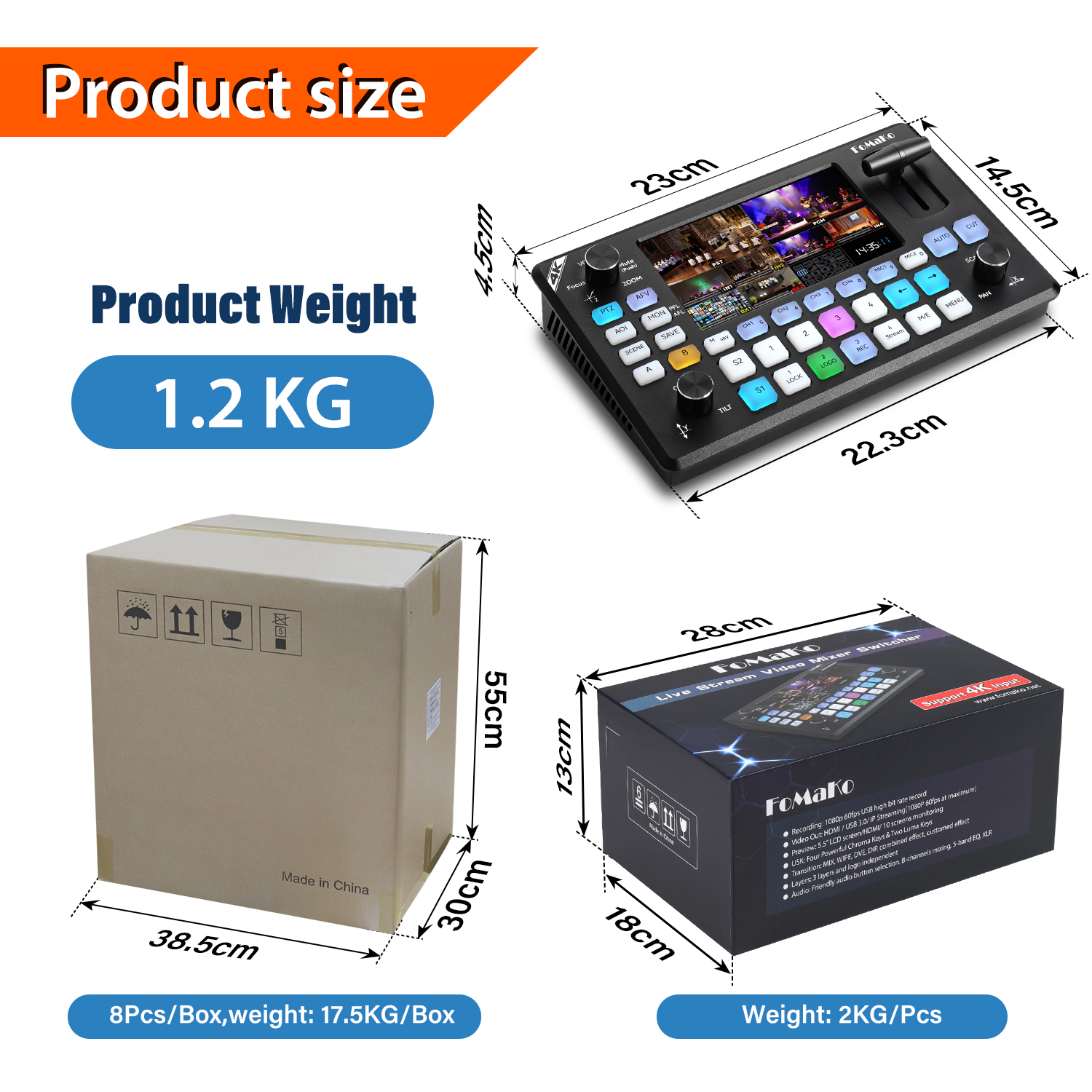

| Physical Specifications | Weight | Device | 1.19kg | ||||
| Packaged | 2.16kg | ||||||
| Dimensions | Device | Panel: 230mm × 144mm; Side: topline 45.6mm, baseline 22.4mm; | |||||
| Packaged | 280mm×180mm×130mm | ||||||
