M6
FoMaKo 4K HDMI Video Mixer Switcher, 10.1 Inch FHD LCD Screen, 5-Channel Live Streaming Switcher, 4K 60FPS Input, 1080p 60FPS Output, Support PTZ Controller, SDI + HDMI Video Switcher
-FoMaKo 4K HDMI Video Mixer Switcher made for Church live service, Studio, education, Live Streaming, Broadcast and houses of worship. M6 is Equipped with 4 HDMI inputs (two 4K60P, two 1080p60) and 4 SDI inputs (3G Level A YCbCr422 10-bit), plus USB and network streaming capabilities, this switcher supports seamless integration of diverse video sources.(4K 60FPS and 1080p 60FPS Input, 1080p 60FPS Output. )
-8-Layer PGM Output and Advanced Directing Tools: Achieve professional production with up to 8 layers of PGM output, including dual PIP (freely resizable and positionable), LOGO overlays with alpha channels, and DSK for subtitles. Features like 30+ transition effects (T-Bar, WIPE, MIX) and PTZ camera control via a 10.1-inch HD touchscreen streamline complex workflows.
-Built-In Media Library: Enhance productions with a preloaded media library (39 default patterns, 32 user-imported images) and customizable presets. Switch between horizontal/vertical screen modes and utilize video playback as an auxiliary source for versatile program creation.

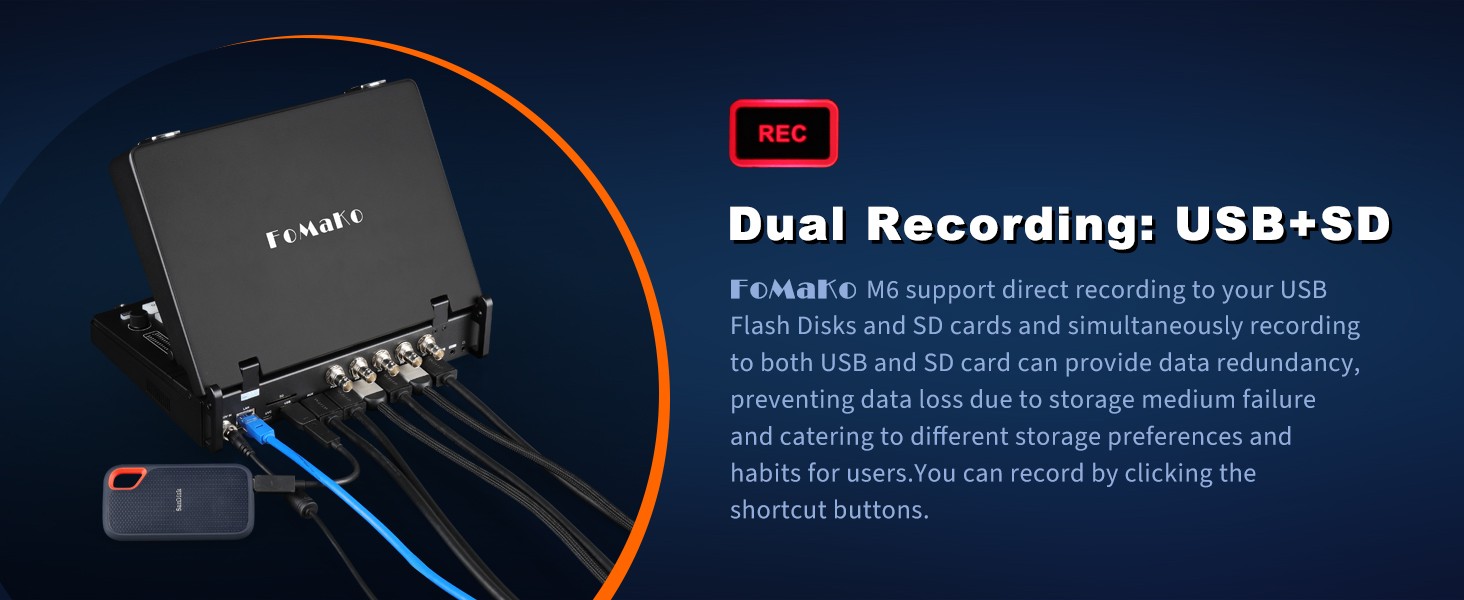

-Dual Network Streaming: Simultaneously push 2 channels of live streams (RTMP/SRT) and pull 1 network stream for dynamic content delivery. The USB 3.1 Type-C port ensures lossless recording to external storage, while HDMI/SDI PGM outputs cater to multi-device setups.

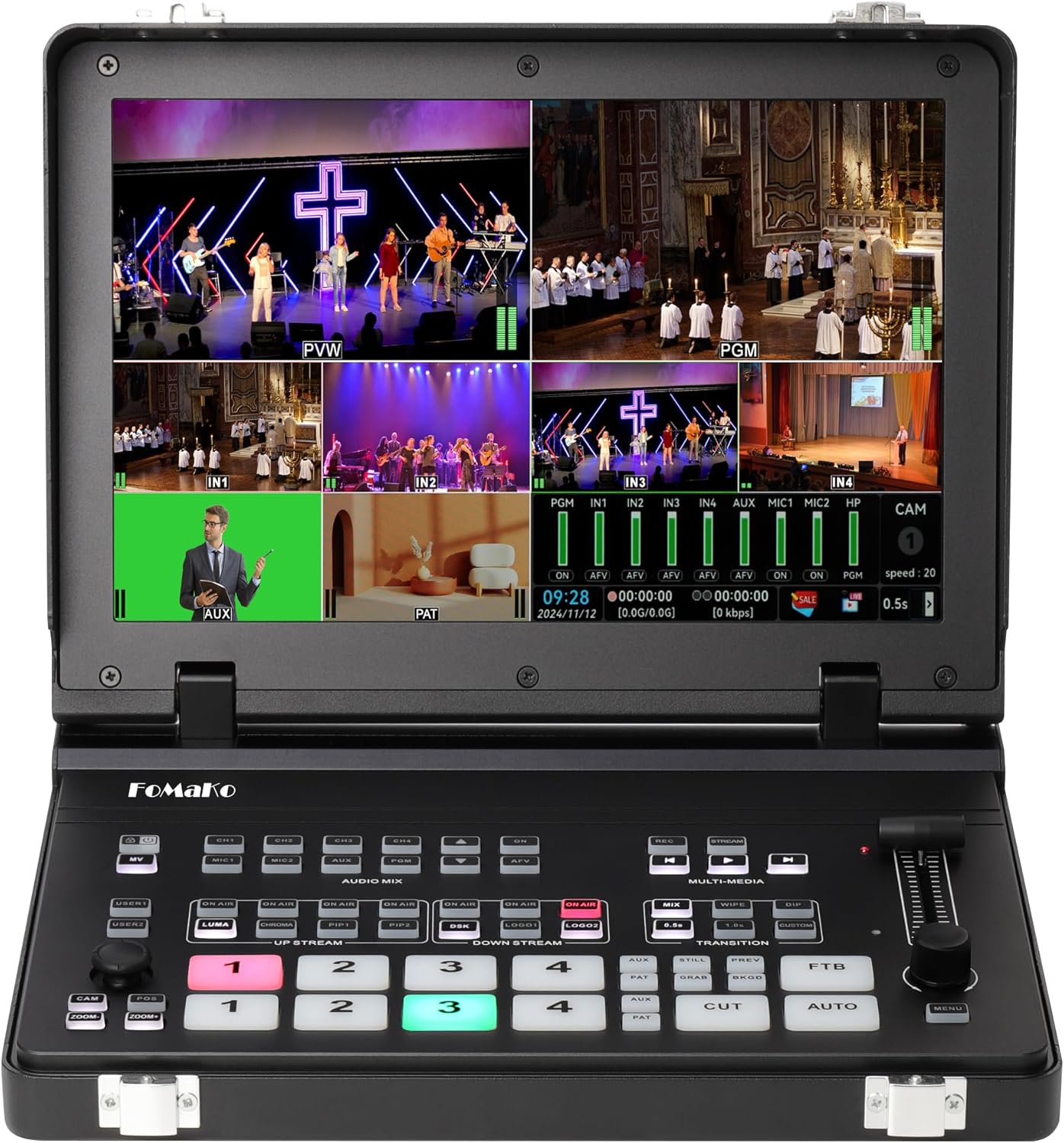

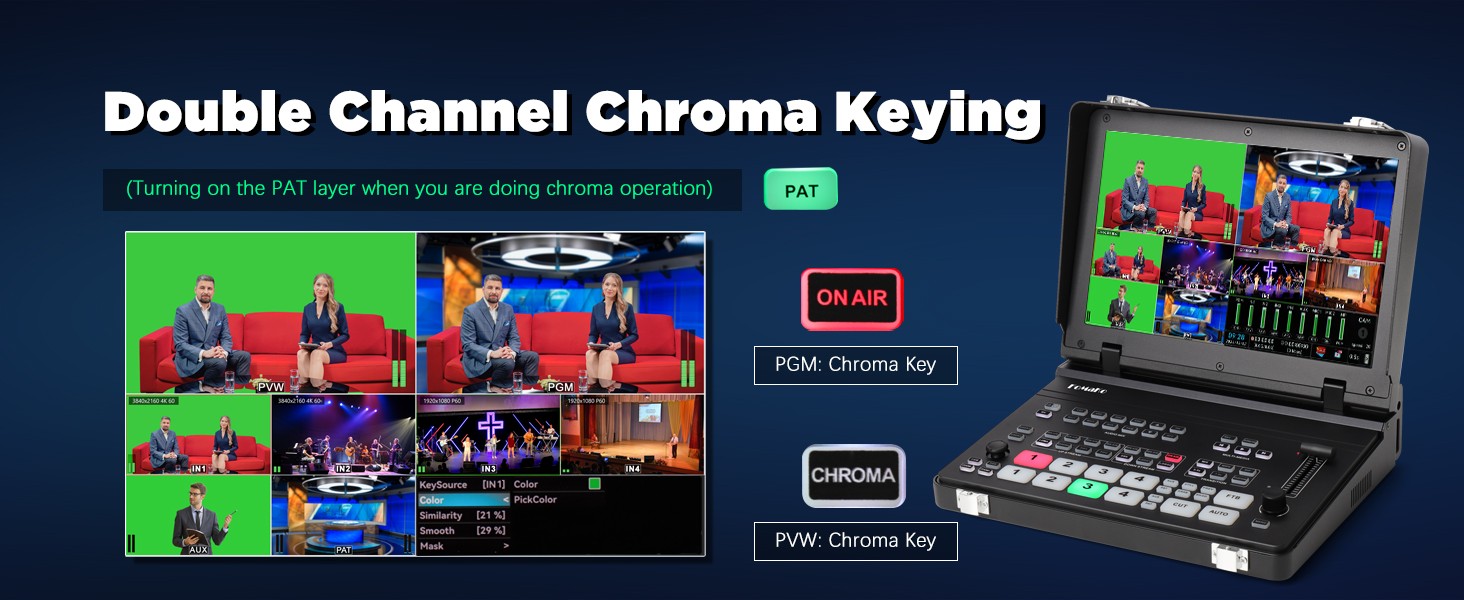

-All-in-One Control and Virtual Studio Capabilities: Integrated PTZ camera control, a 10.1-inch multiview display, and web-based remote access (via PC/mobile) enable single-operator efficiency. Professional chroma keying and brightness keying deliver studio-quality virtual backgrounds, ideal for live events, education, and broadcasts.
-3-Year Limited Warranty​​ - Shop with confidence. ​ 30-Day No-Questions-Asked Money-Back Guarantee​​ - Risk-free purchase. ​Free Online Training​​ - Get started easily. 24/7 Expert Assistance​​ - Responses within 24 hours (please include your Order ID). Enjoy our lifetime customer technical support. Your satisfaction is our priority, we have got you covered!
Share:
Product introductionTech SpecPackagingDownload

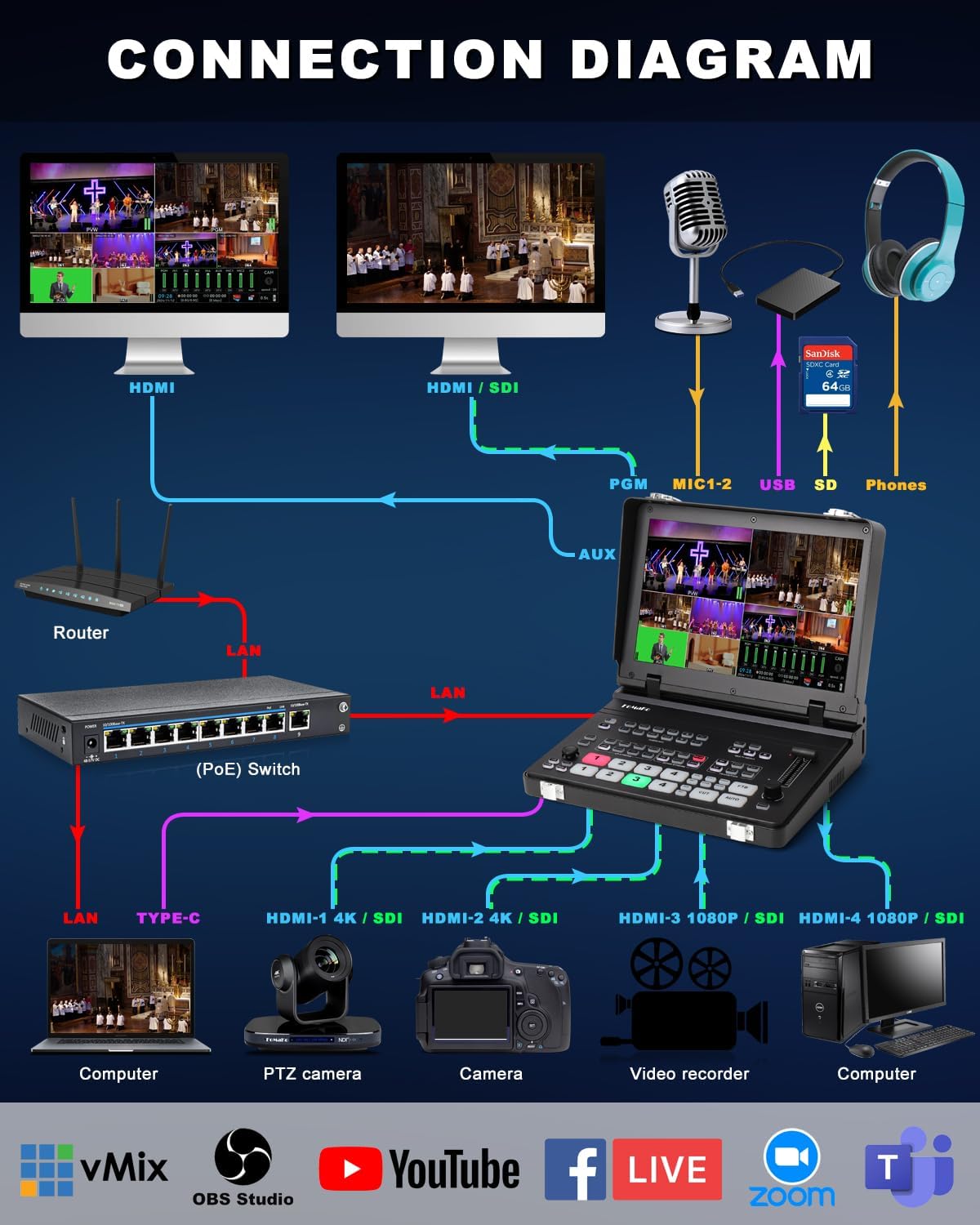

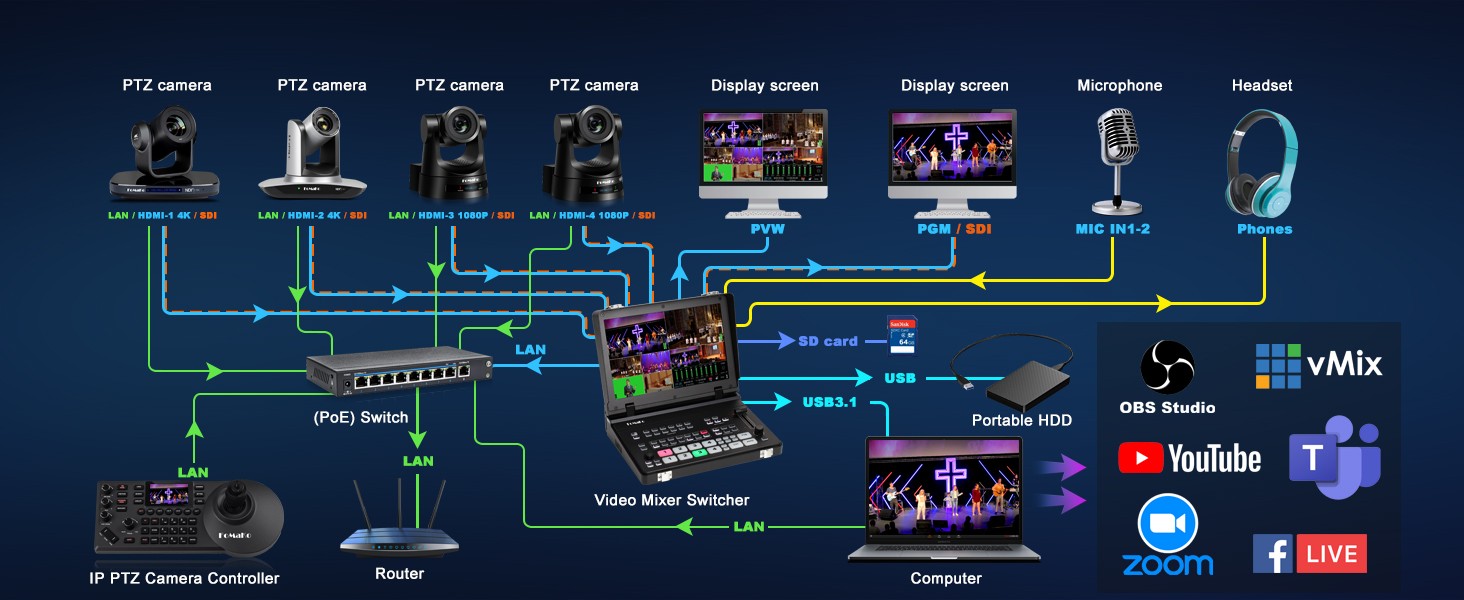

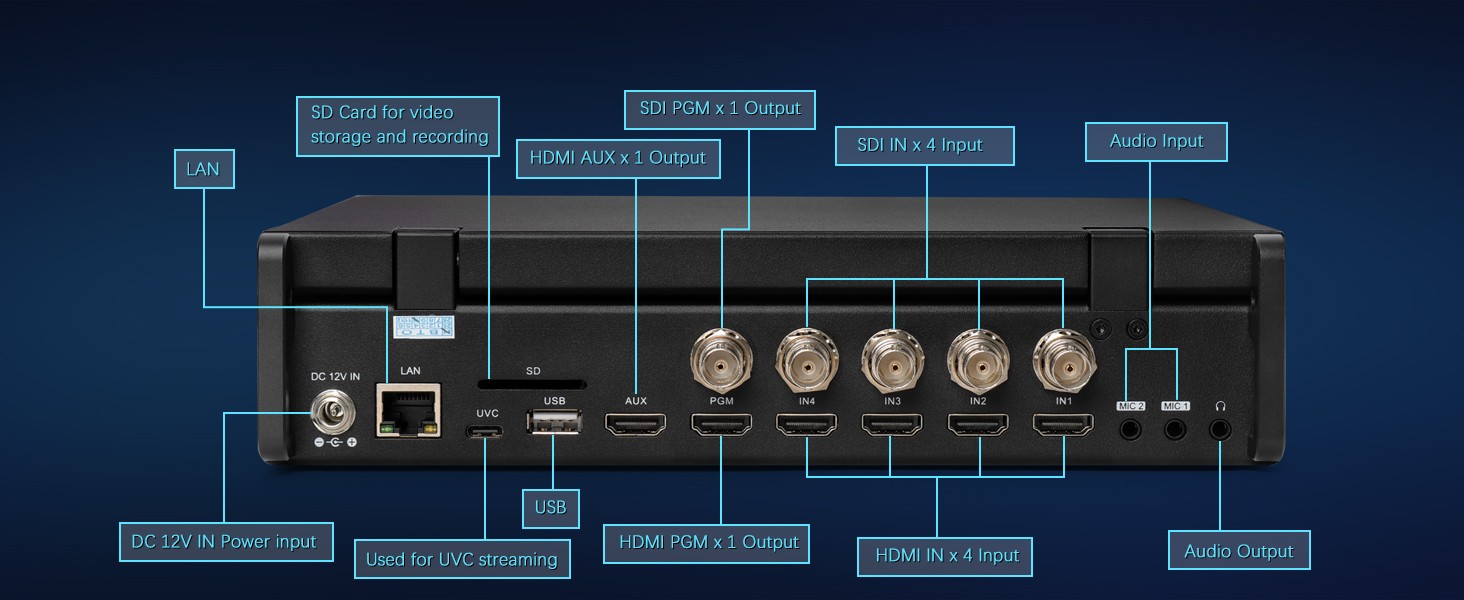

FoMaKo M6 Connection Diagram


Parameters

Video Input

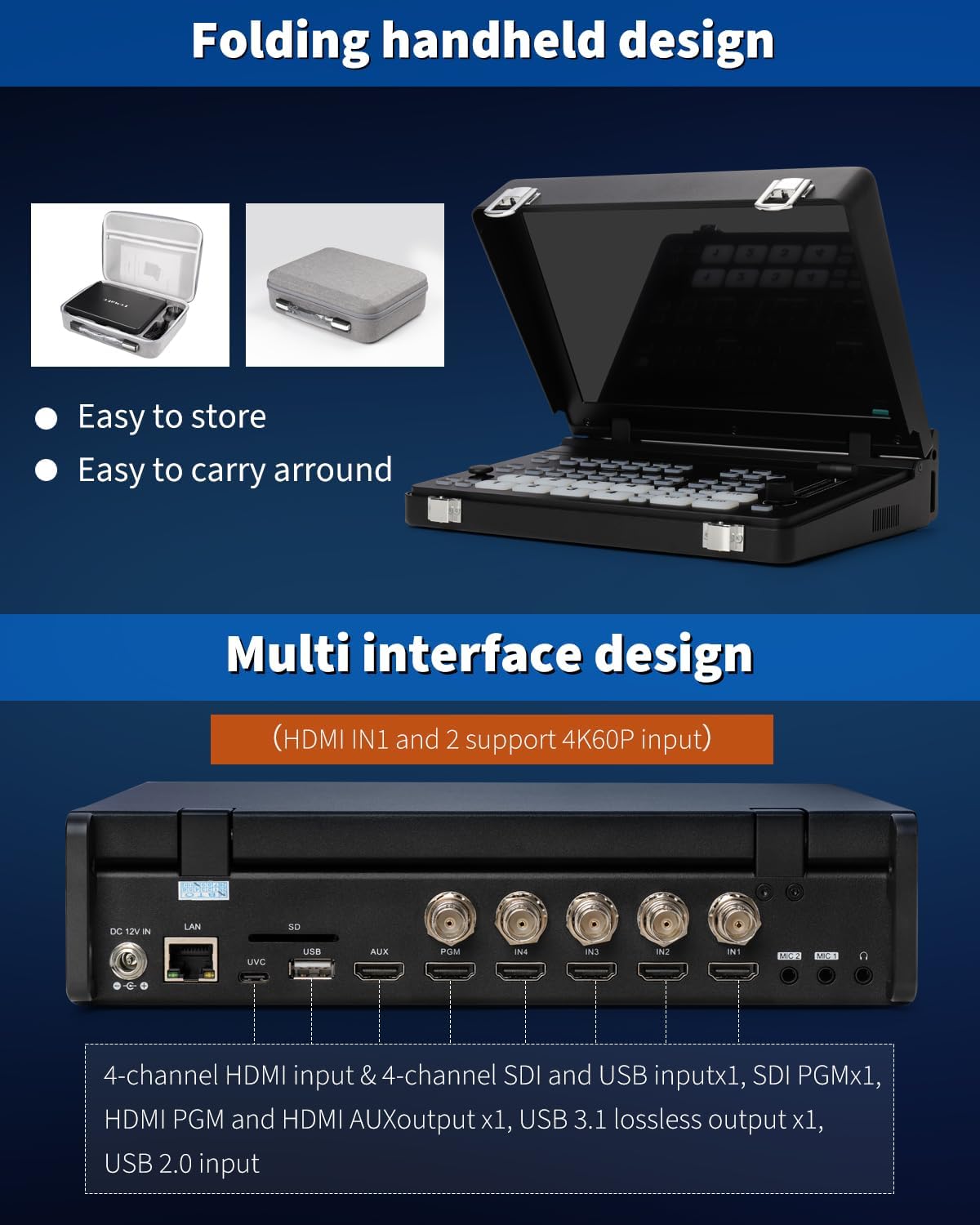

HDMI INx4   SDI INx4    USBx1

Video Output

HDMI  PGMx1+HDMNI AUXx1+USB  3. 1x1  Type-C  and RJ45x1Network Streaming

Audio Input

Line(3.5mm Stereo)x2

Audio Output

Line(3.5mm Stereo)x1

USB

Used for video encoding storage, camera, LOGO image, firmware upgrade, etc.

Control Port

LAN x 1 For network streaming, PTZ camera control, software control

SD Card

Video recording storage

Power

DC 7~ 12V ≤18.5W

Functions

Transition

T-Bar/AUTO/ CUT

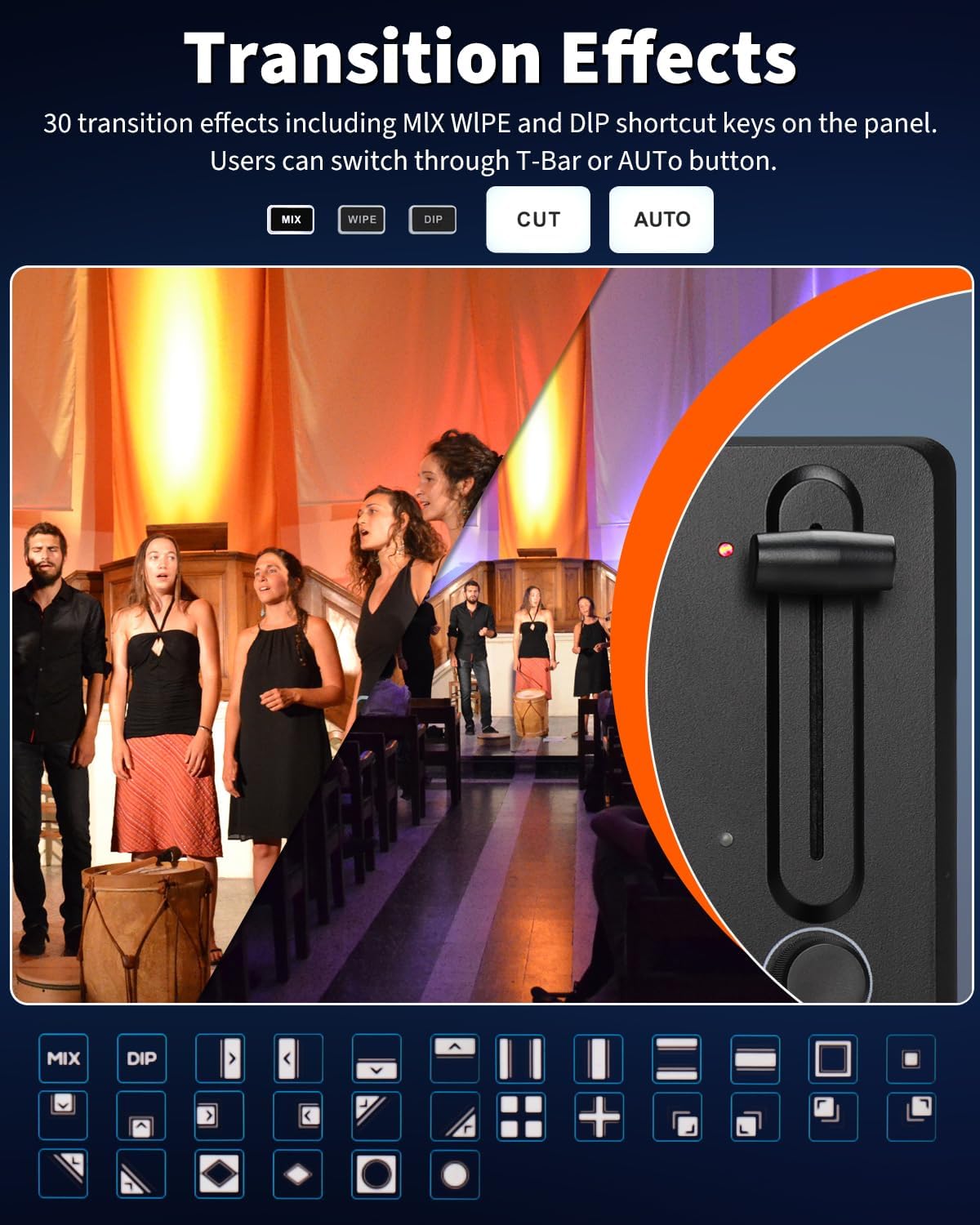

Transition Effects

WIPEVarious patterns/MIX/DIP/Transition Preview/BKGD/Still (Freeze)/FTB

Key

Upstream KeyChroma keyx1/Luma keyx1/PIPx2

Downstream keyDSKx1/LOGOx2

Layers

PGM Support up to 8 layers

Audio

HDMI x 4 SDIx 4Multimedia and 2-way microphone/analog audio input; Audio delay: 0-1s

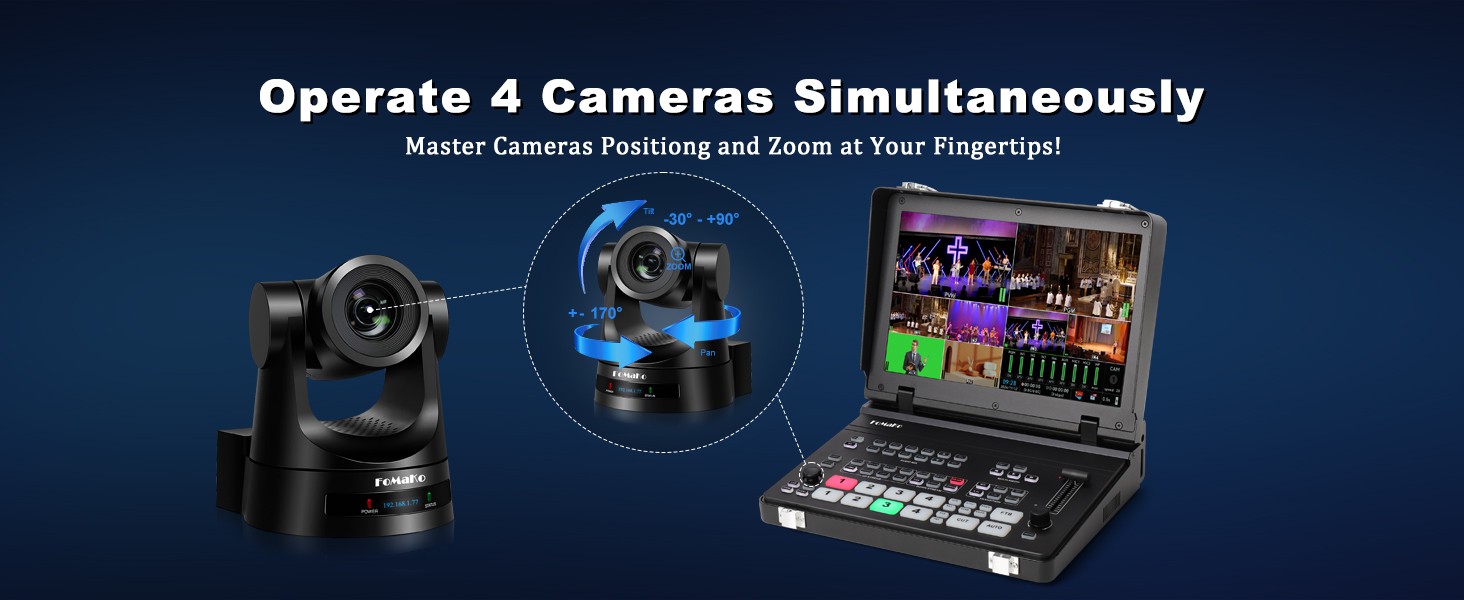

PTZ

VISCA IP protocol

Media Library

Supports presetting of multiple background images,logos and video streams

Streaming

H.264 Encoding, supports recording and multi-network streaming, supports recording and streaming bit rate    separation

LOGO

Any   size   (up   to   960x540)   and   position,   support   alpha transparent channel (png images)

Format Support

HDMI Input Support

2160p 60/59.94/50/30/29.97/25/24/23.98HDMI2.0 input 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i50/1080i60

HDMI PGM Output

1080p 60/50/48/30/25/24

SDI Input Support

3G Level AYCbCr422 10bitSDI version

SDI PGM Output

1080p 60/50/48/30/25/24SDI version

HDMI Color Space

RGB/YUV

UVC Output

USB 3.1 Lossless output, Maximum support YUV2 1080p60

Data Stream Support

1080p 60/59.94/50/30/29.97/25/24/23.98

Others

Power

7~24V

Power Consumption

≤18.5W

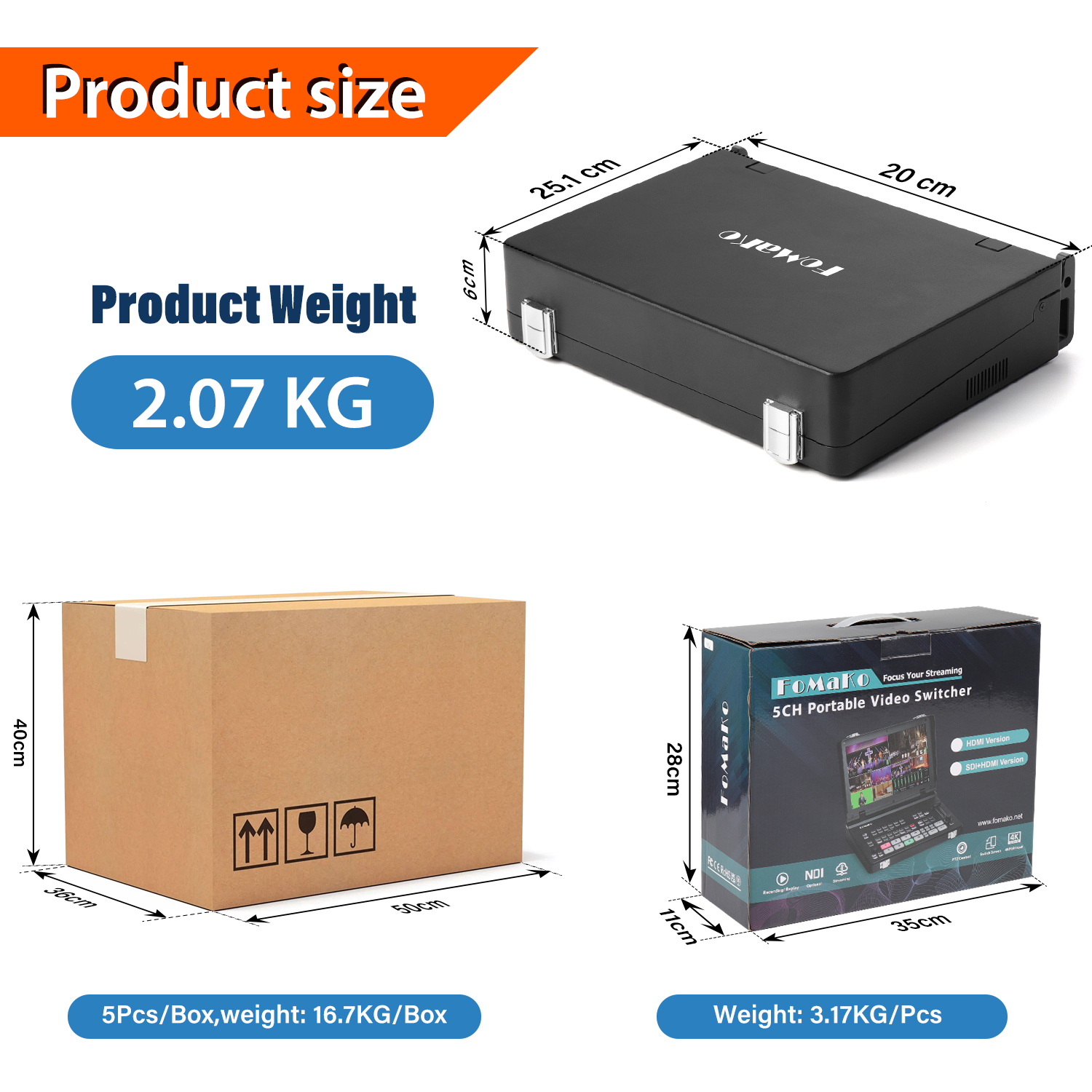

Size (LDW)

250*206*63mm

Weight

2. 1kg

Temperature

Working Temp: 0~50, Storage Temp. : -30~70



Accessories

DC Adapter( 12V 2A)*1 USB Cable(A to C)*1   Suitcase* 1Optional
