M3
FoMaKo 4K HDMI Video Mixer Switcher, 5.5 Inch FHD LCD Screen, 5-Channel Live Streaming Switcher, 4K 60FPS Input, 1080p 60FPS Output, Support PTZ Controller, HDMI Video Switcher

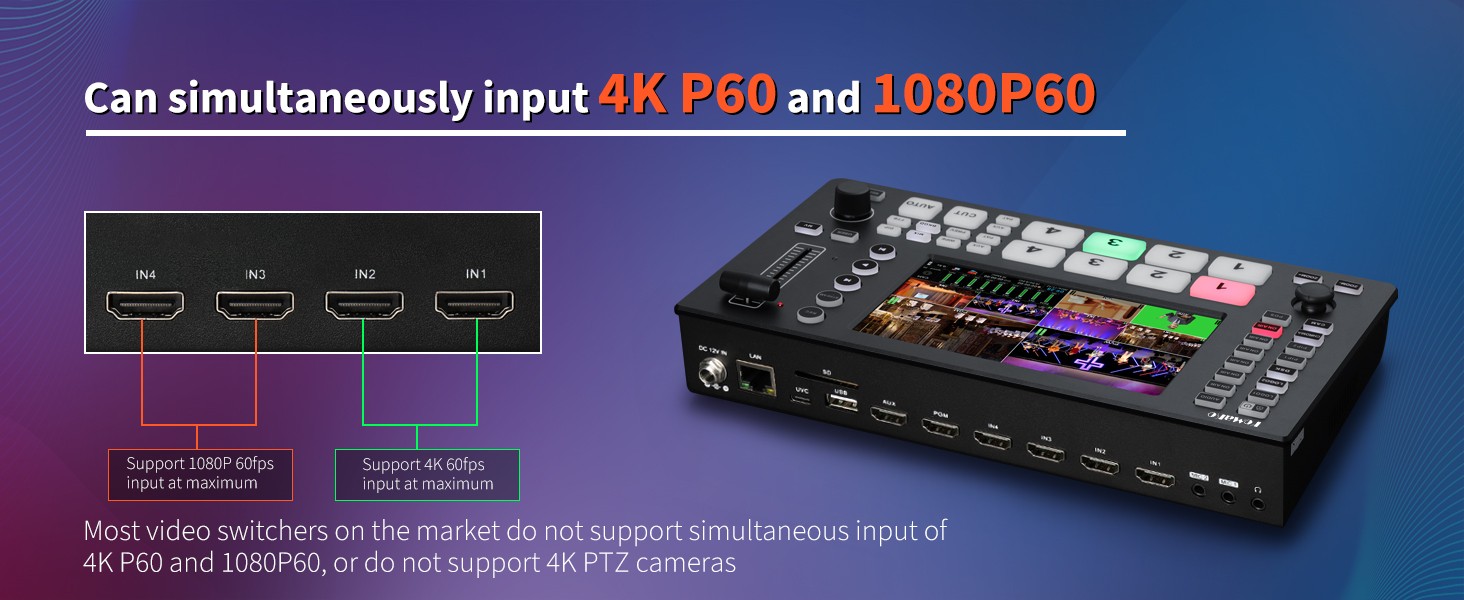

-FoMaKo 4K HDMI Video Mixer Switcher made for Church live service, Studio, education, Live Streaming, Broadcast and houses of worship. 5.5-inch Integrated Monitoring Display. The 5.5-inch LCD screen provides real-time monitoring directly on the switcher. This integrated resolution ensures immediate visual feedback.(4K 60FPS and 1080p 60FPS Input, 1080p 60FPS Output. )

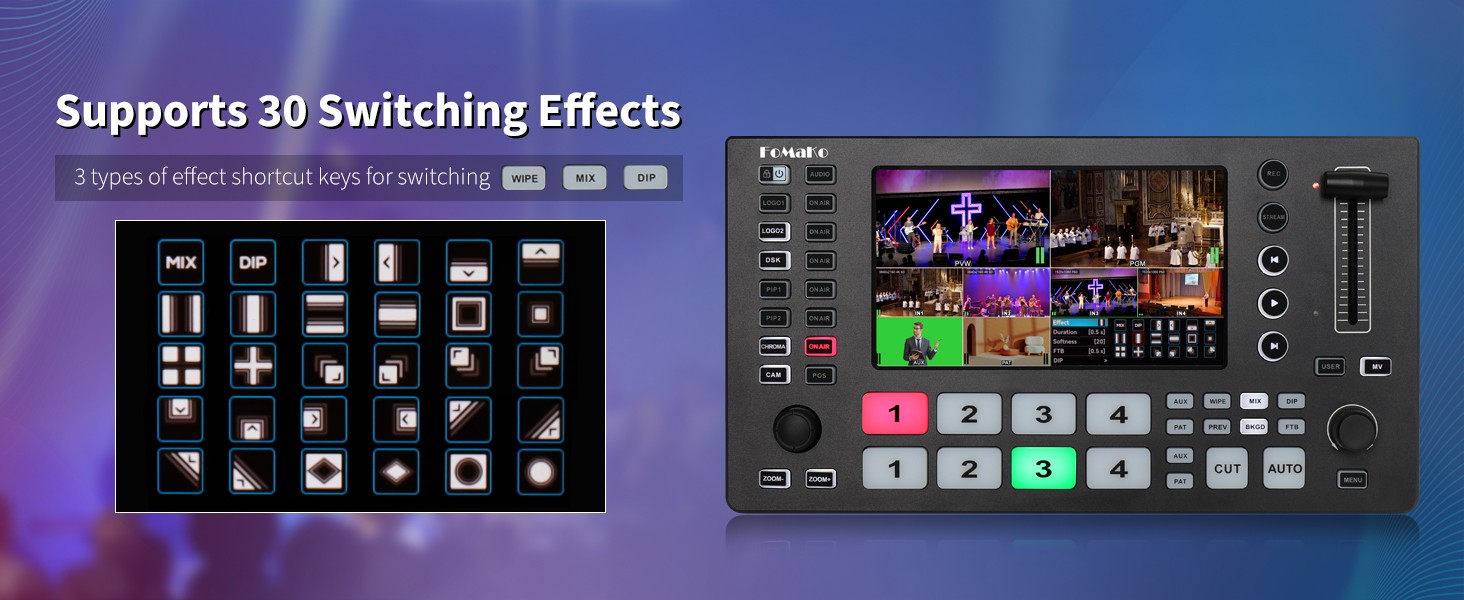

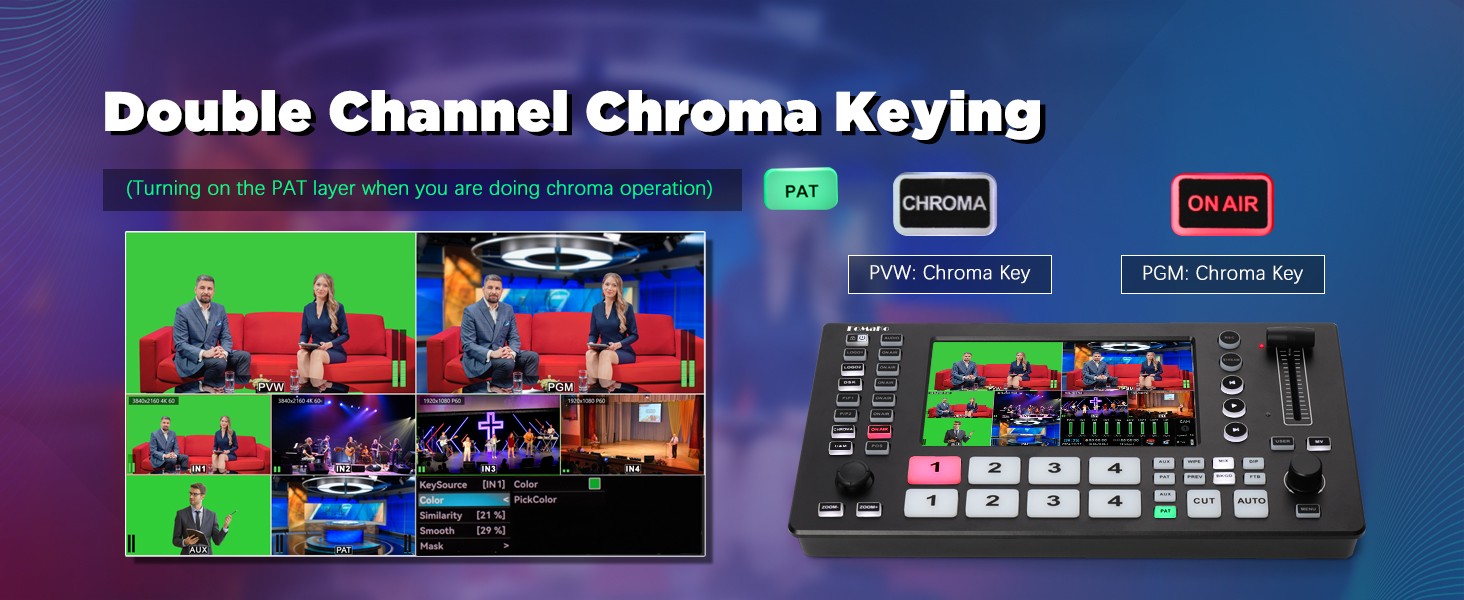

-Advanced Video Effects and Transitions. M3 includes a comprehensive video effects such as Luma key, Chroma key, DSK,PIP and LOGO overlay. Additionally, it offers 30 distinct transition effects like Fade,Mix and Wipe,enabling users to create visually engaging and professional content. These features are real time rendered, making live production more excellent.
-Extensive Software Compatibility. M3 is highly compatible with popular streaming platforms and software like Facebook,Youtube, OBS and Vmix. This allows for direct integration and simultaneous broadcasting across multiple platforms.

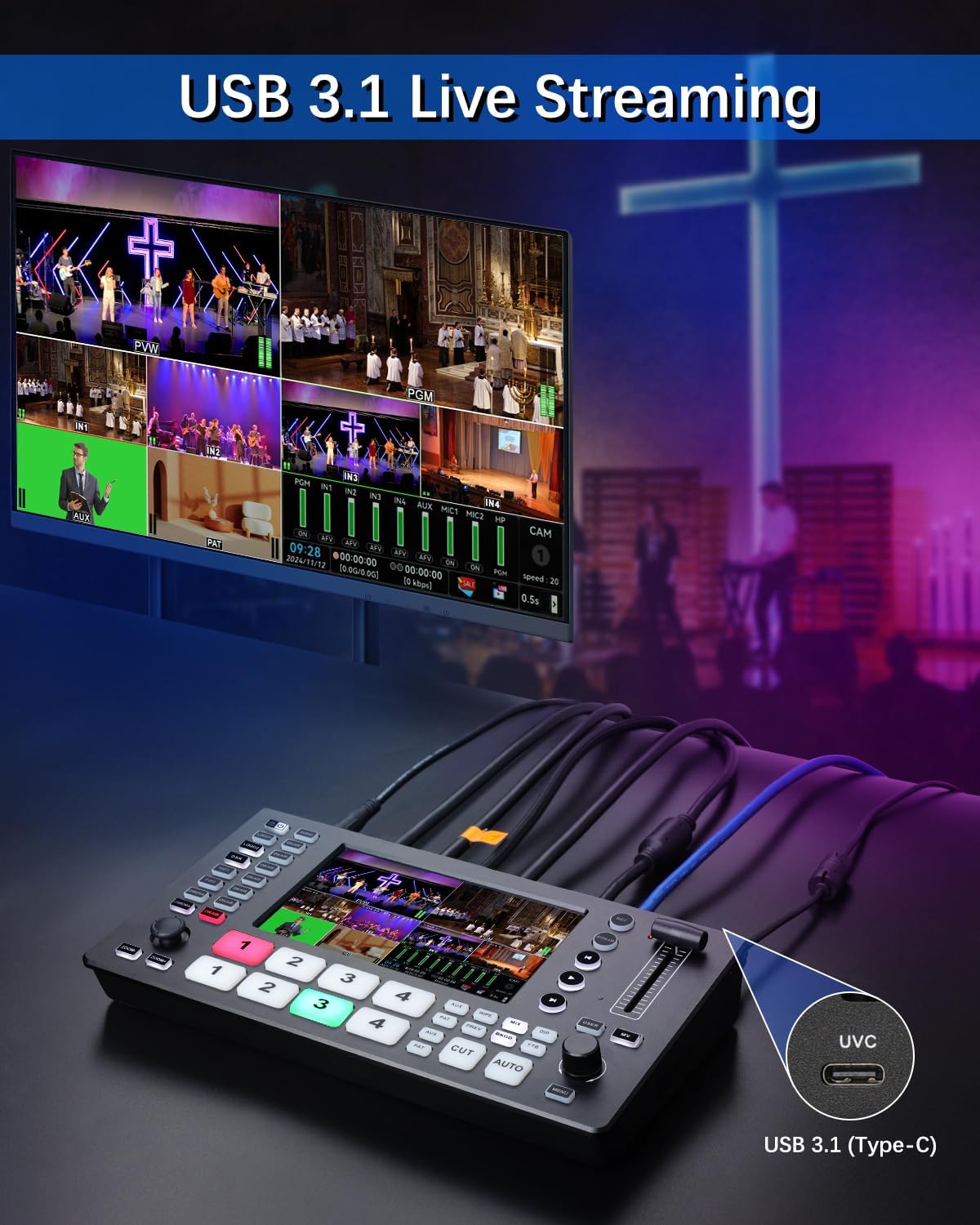

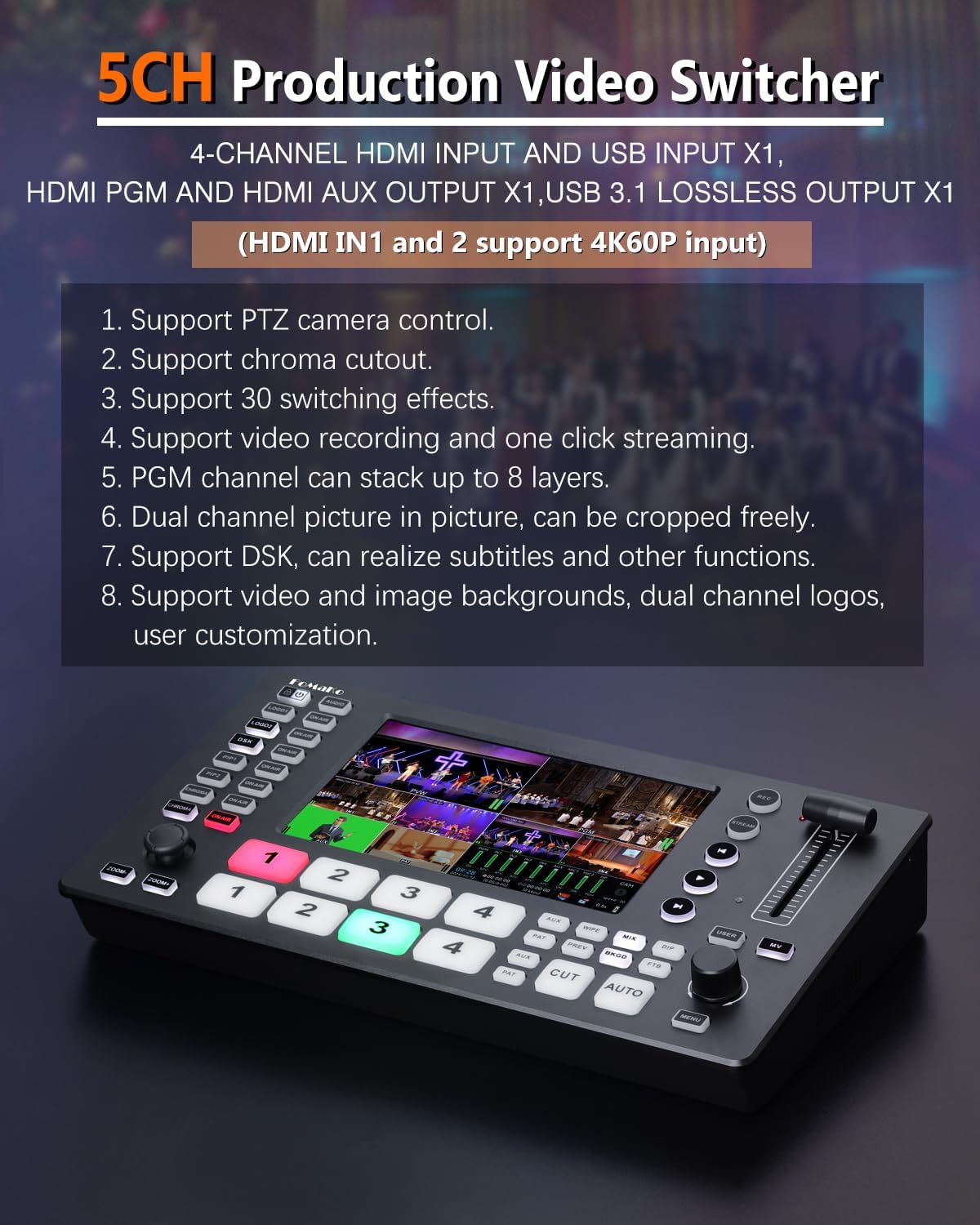

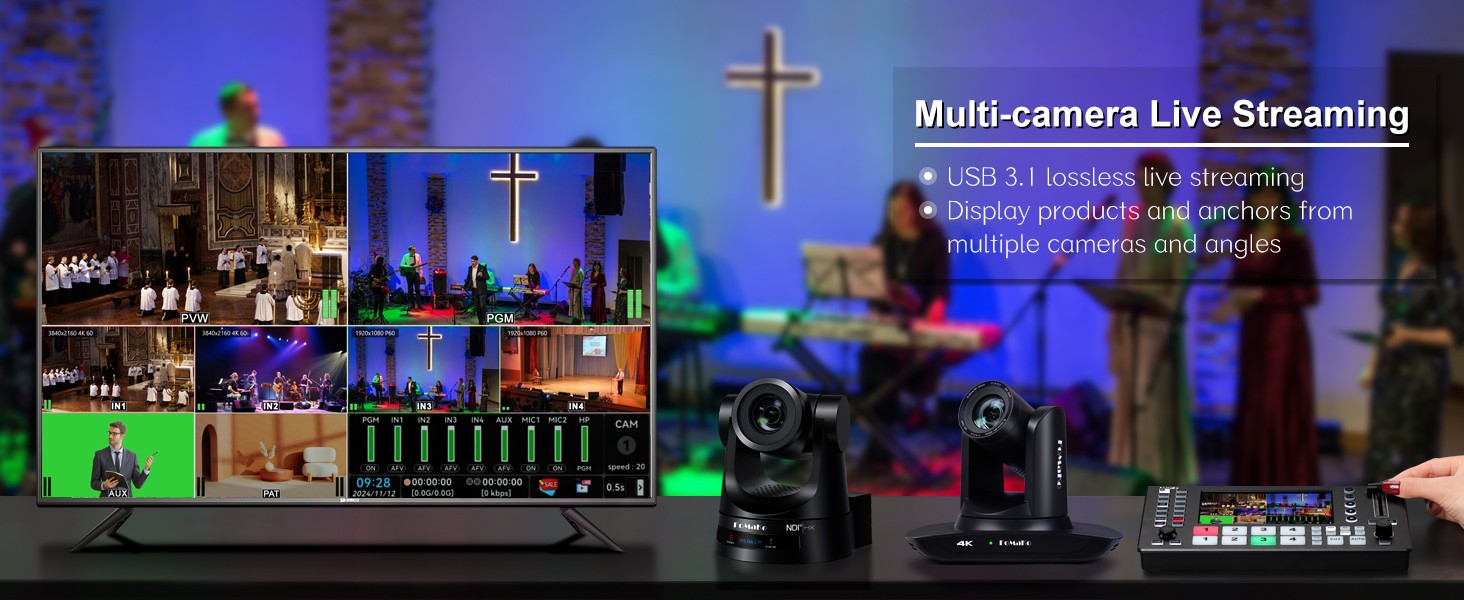

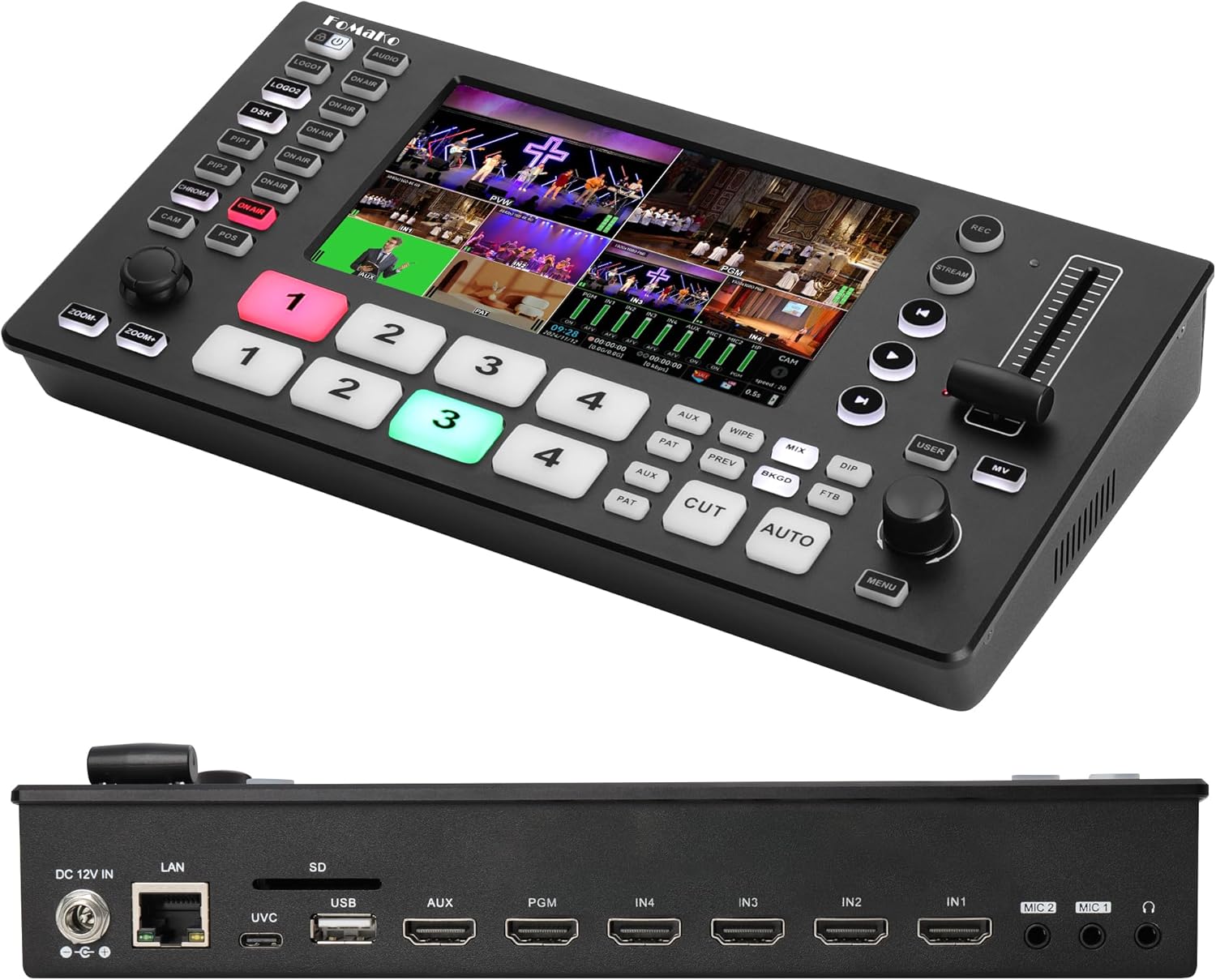

-Multi-Camera Live Production. M3 is a 5-channel switcher with 4xHDMI inputs,1xUSB input, 1xHDMI PGM output, and 1xHDMI AUX output. It also features a USB 3.1 lossless output supporting up to YUV2 1080P60. This multi-camera capability enables users to capture diverse angles and deliver dynamic content, making idea for professional live streaming.

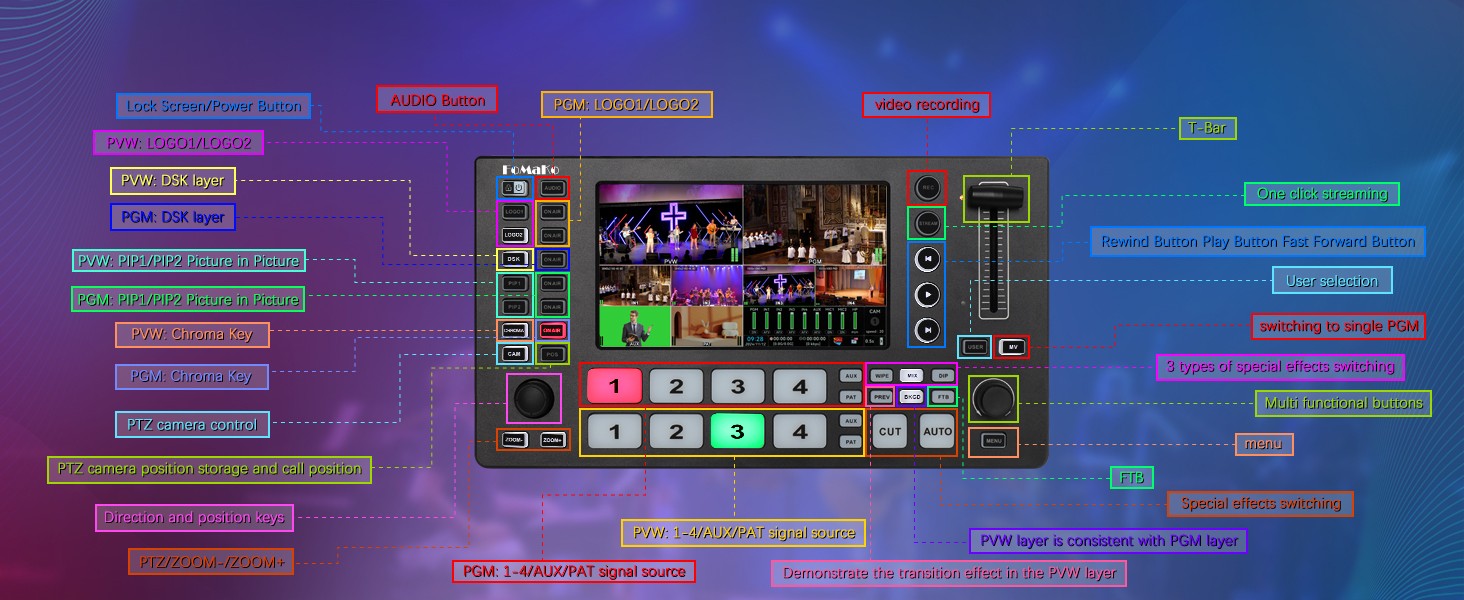

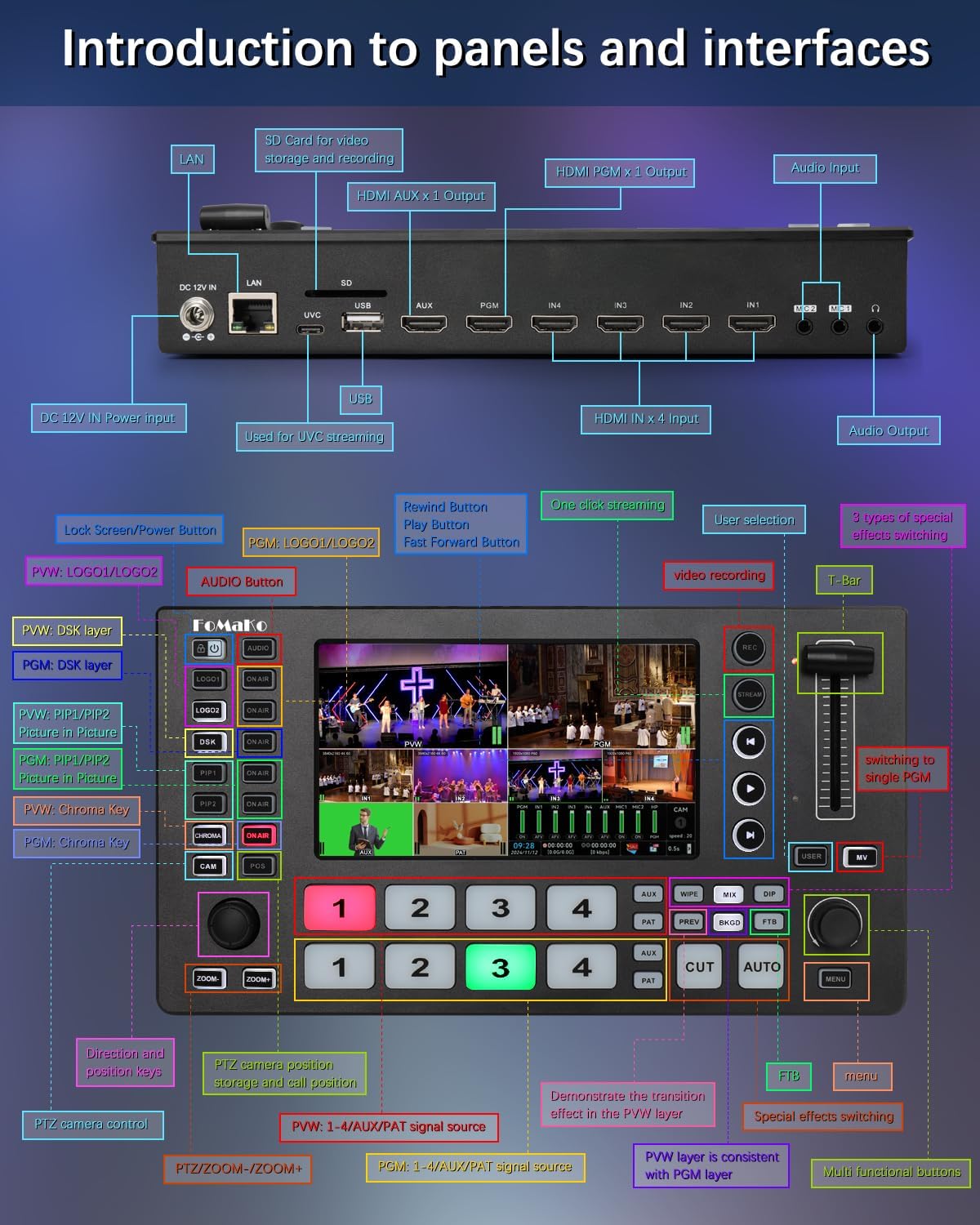

-Intuitive Control Panel and Operation Menu. M3 features an ergonomic control panel that includes a T-Bar and a joystick, providing precise and intuitive control over the switching process.This user-friendly interface enhances the operational efficiency and flexibility of the switcher, allowing operators to execute complex live productions with ease and confidence.
-3-Year Limited Warranty​​ - Shop with confidence. ​ 30-Day No-Questions-Asked Money-Back Guarantee​​ - Risk-free purchase. ​Free Online Training​​ - Get started easily. 24/7 Expert Assistance​​ - Responses within 24 hours (please include your Order ID). Enjoy our lifetime customer technical support. Your satisfaction is our priority, we have got you covered!
Share:
Product introductionTech SpecPackagingDownload

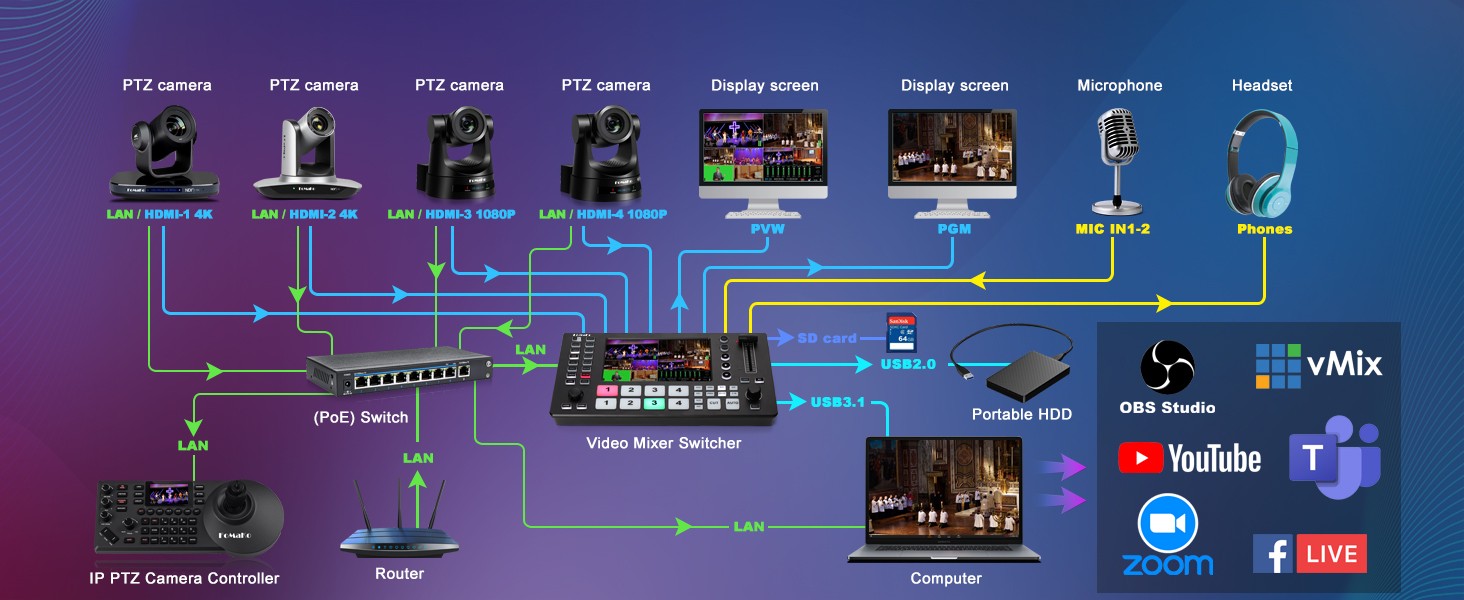

FoMaKo M3 Connection Diagram


Parameters

Video Input

HDMI INx4   SDI INx4    USBx1

Video Output

HDMI  PGMx1+HDMNI AUXx1+USB  3. 1x1  Type-C  and RJ45x1Network Streaming

Audio Input

Line(3.5mm Stereo)x2

Audio Output

Line(3.5mm Stereo)x1

USB

Used for video encoding storage, camera, LOGO image, firmware upgrade, etc.

Control Port

LAN x 1 For network streaming, PTZ camera control, software control

SD Card

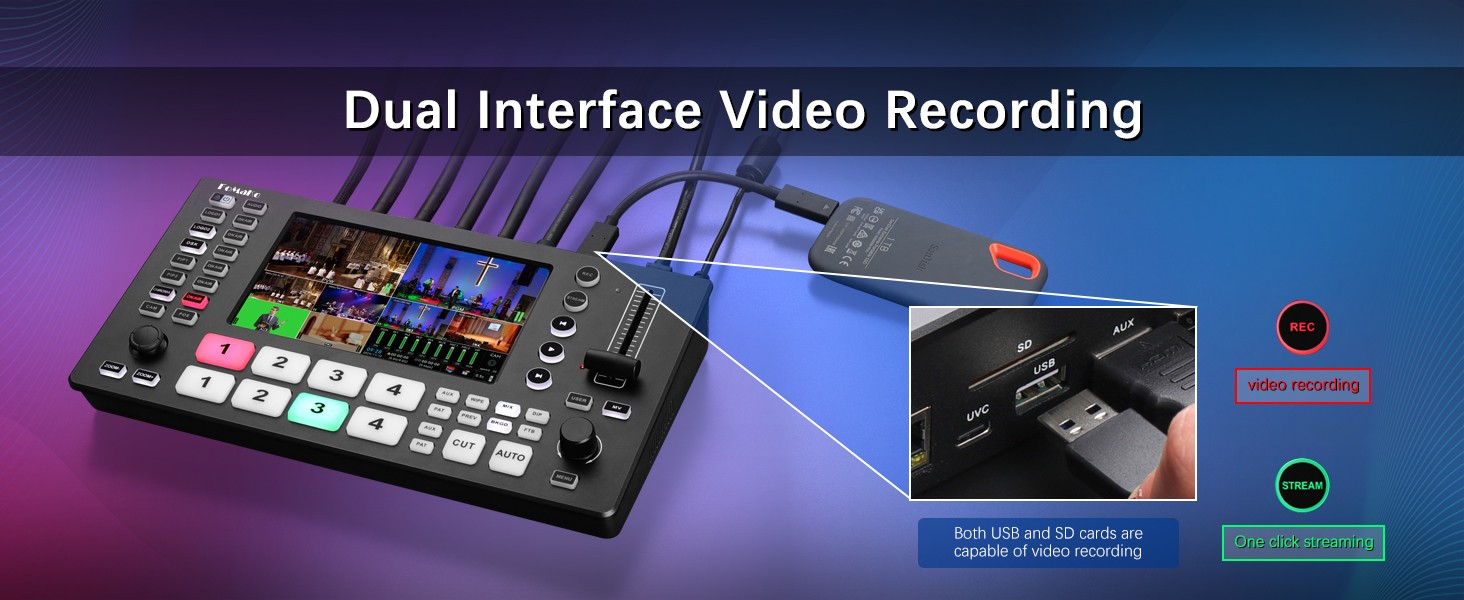

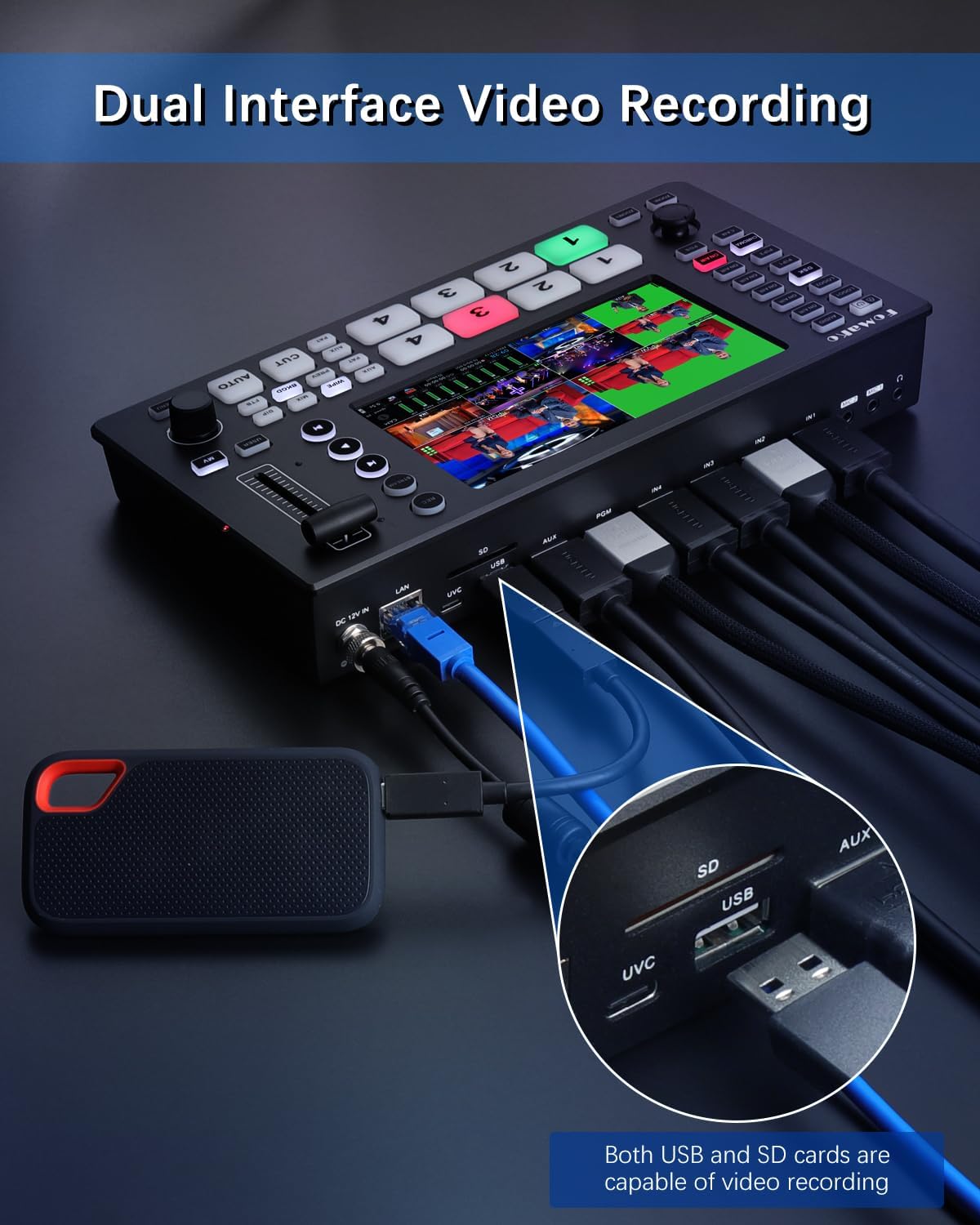

Video recording storage

Power

DC 12V x 1

Functions

Transition

T-Bar/AUTO/ CUT

Transition Effects

WIPEVarious patterns/MIX/DIP/Transition Preview/BKGD/Still (Freeze)/FTB

Key

Upstream KeyChroma keyx1/PIPx2

Downstream keyDSKx1/LOGOx2

Layers

PGM Support up to 8 layers

Audio

HDMI x 4 SDI x 4Multimedia and 2-way microphone/analog audio input; Audio delay: 0-1s

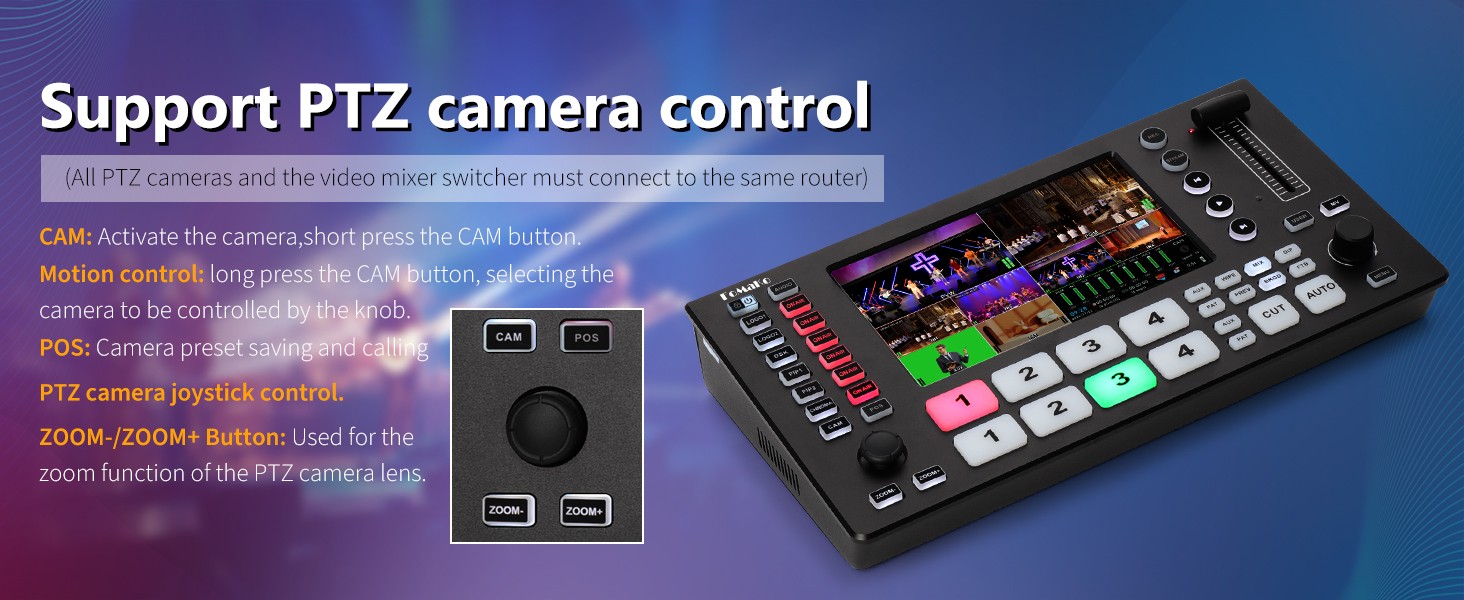

PTZ

VISCA IP protocol

Media Library

Supports presetting of multiple background images, logos and video streams

Streaming

H.264 Encoding, supports recording and multi-network streaming, supports recording and streaming bit rate    separation

LOGO

Any   size   (up   to   960x540)   and   position,   support   alpha transparent channel (png images)

Format Support

HDMI Input Support

2160p 60/59.94/50/30/29.97/25/24/23.98HDMI2.0 input 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i50/1080i60

SDI Input Support

3G Level AYCbCr422 10bitSDI version

HDMI PGM Output

1080p 60/50/48/30/25/24

SDI PGM Output

1080p 60/50/48/30/25/24SDI version

HDMI Color Space

RGB/YUV

UVC Output

USB 3.1 Lossless output, Maximum support YUV2 1080p60

Data Stream Support

1080p 60/59.94/50/30/29.97/25/24/23.98

Others

Power

7~24V

Power Consumption

≤15W

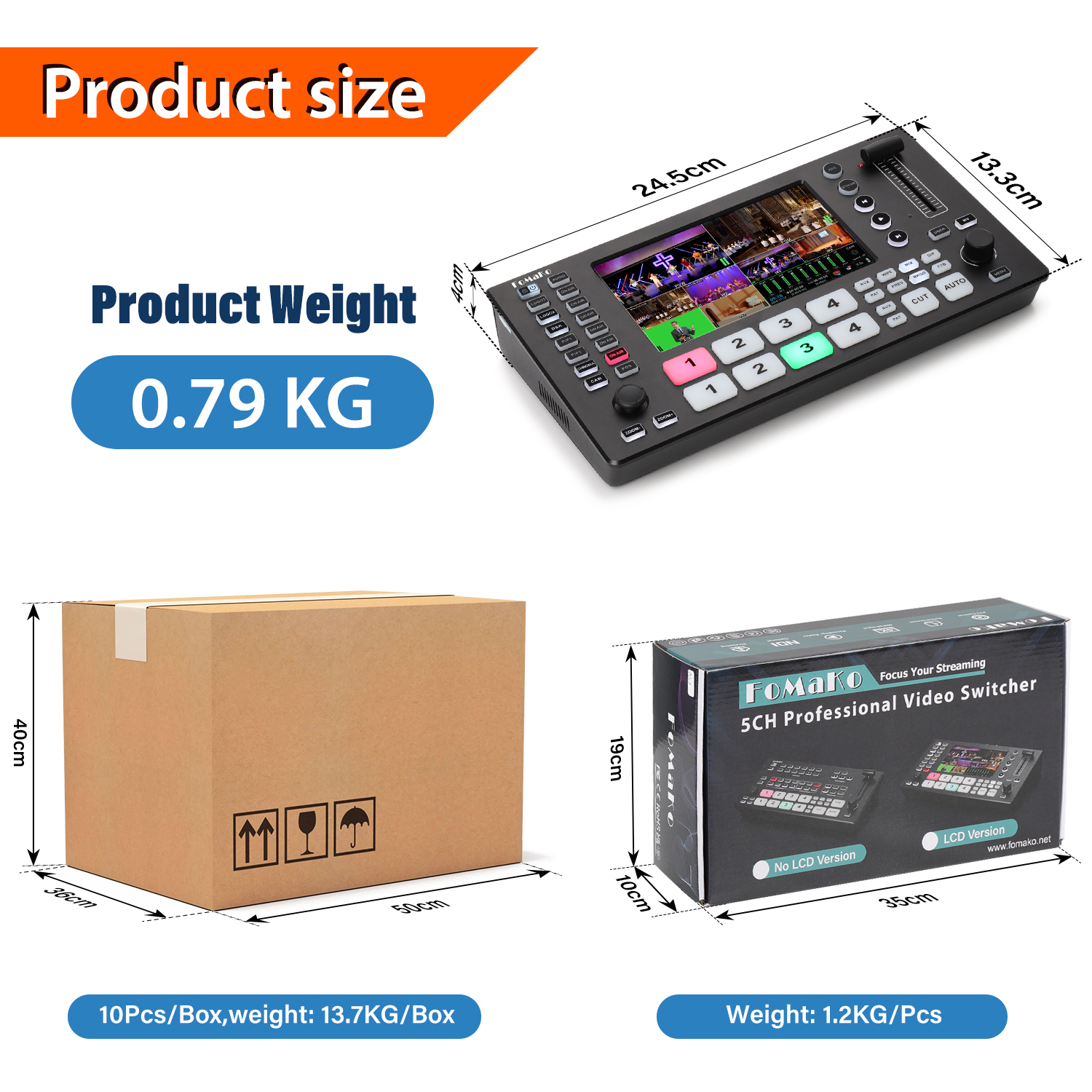

Size (LDW)

244x133x50mm/244x141x50mm

Weight

805g/890g

Temperature

Working Temp: 0~50, Storage Temp. : -30~70

Accessories

DC Adapter( 12V 2A)*1 USB Cable(A to C)*1
