M5

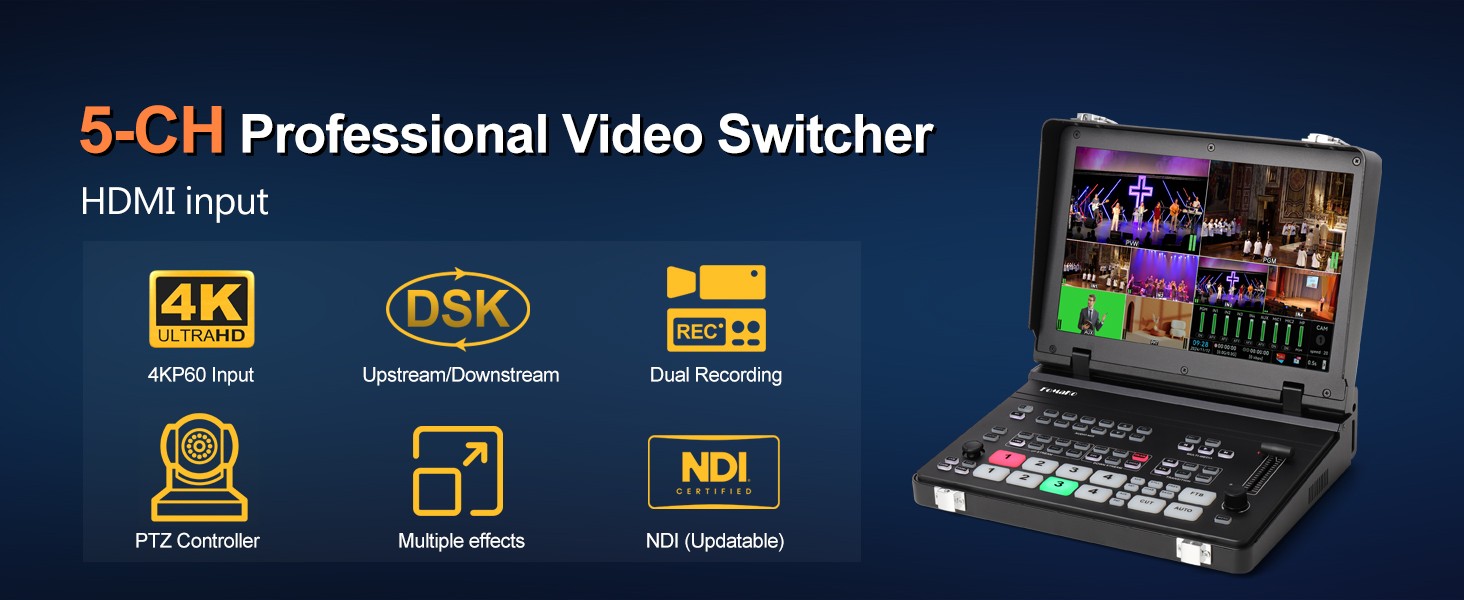

FoMaKo 4K HDMI Video Mixer Switcher, 10.1 Inch FHD LCD Screen, 5-Channel Live Streaming Switcher, 4K 60FPS Input, 1080p 60FPS Output, Support PTZ Controller, HDMI Video Switcher

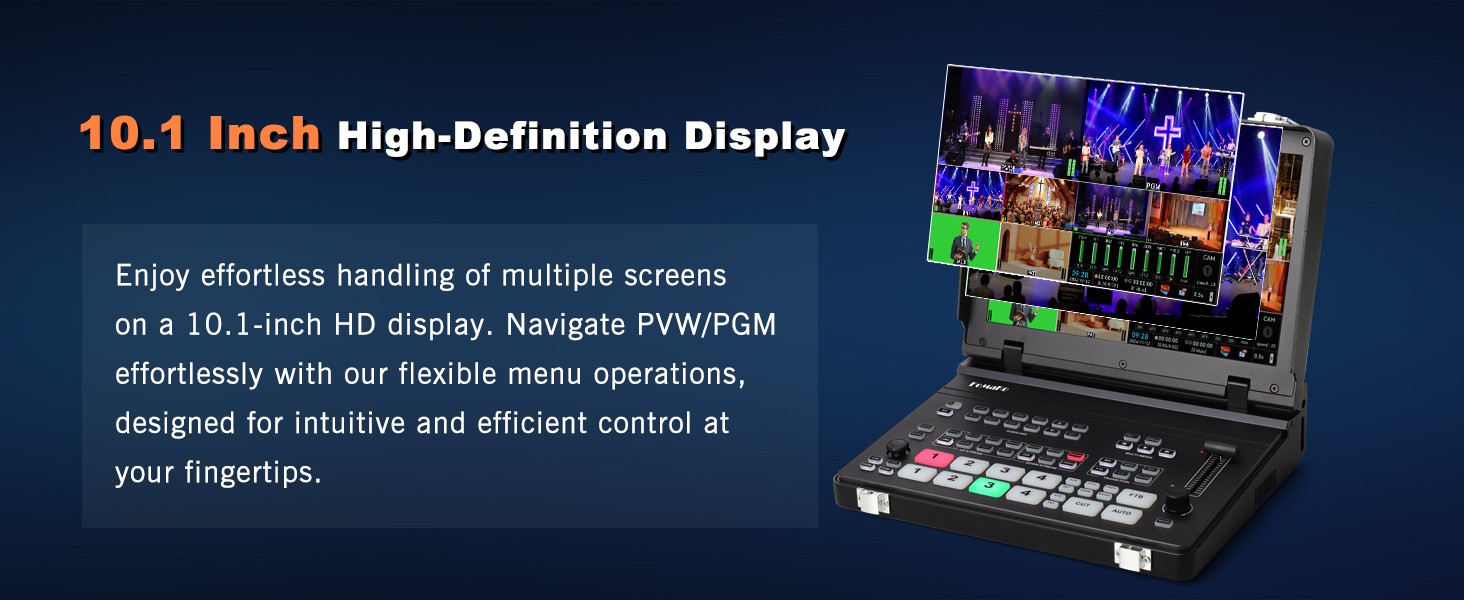

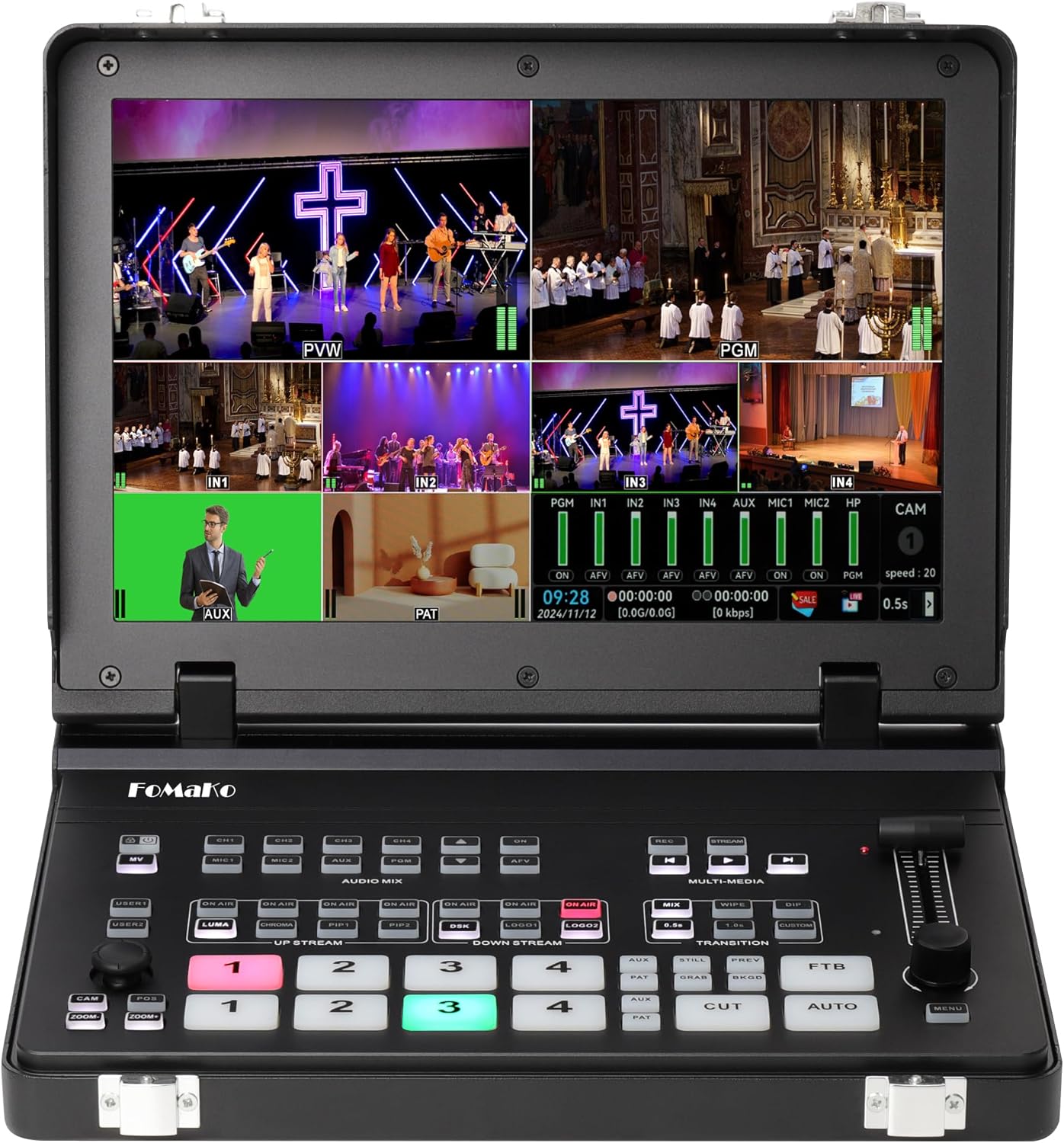

-FoMaKo 4K HDMI Video Mixer Switcher made for Church live service, Studio, education, Live Streaming, Broadcast and houses of worship.M5 features a 10.1-inch FHD LCD screen for real-time monitoring of multi-view signals, menu navigation, and flexible operations. Its compact, portable design makes it ideal for on-the-go live productions. (4K 60FPS and 1080p 60FPS Input, 1080p 60FPS Output. )

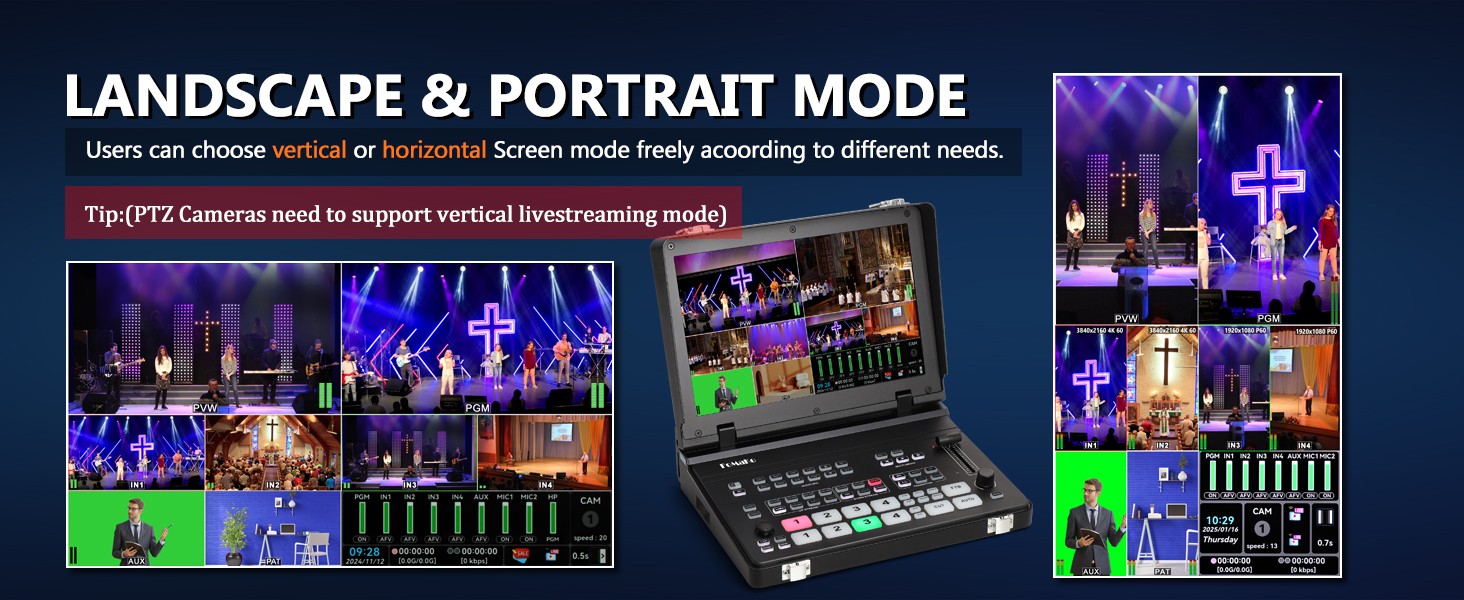

-Professional Video Output Options: Achieve professional-grade results with multiple output options, including SDI PGM,HDMI PGM, and HDMI AUX outputs. The USB 3.1 lossless output ensures high-quality streaming and recording without compromising on quality. Additionaly, the PTZ functionality allows for dynamic camera control, while the vrtical and horizontal screen switching feature supports diverse content formats, making it idea for various platforms and applications.

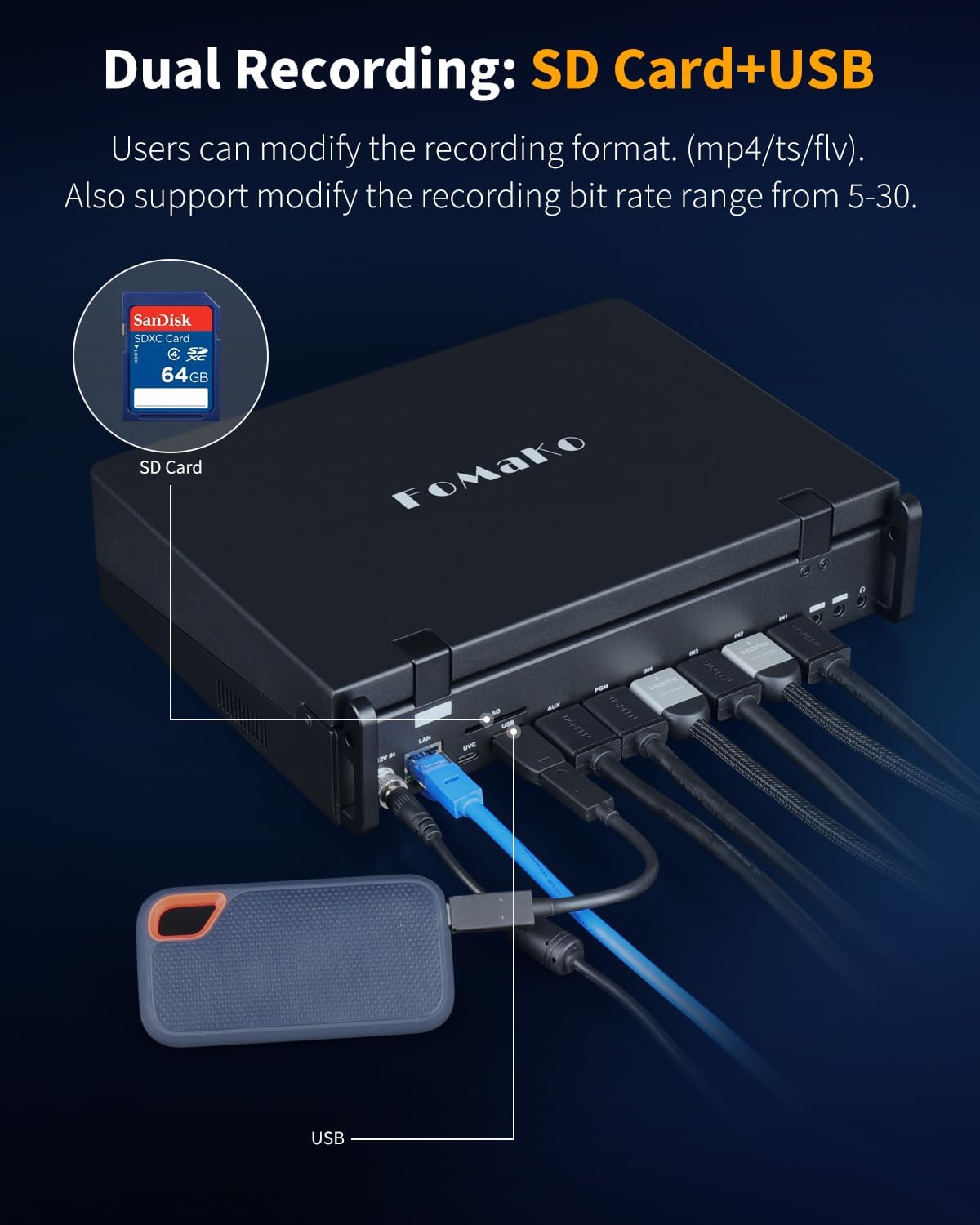

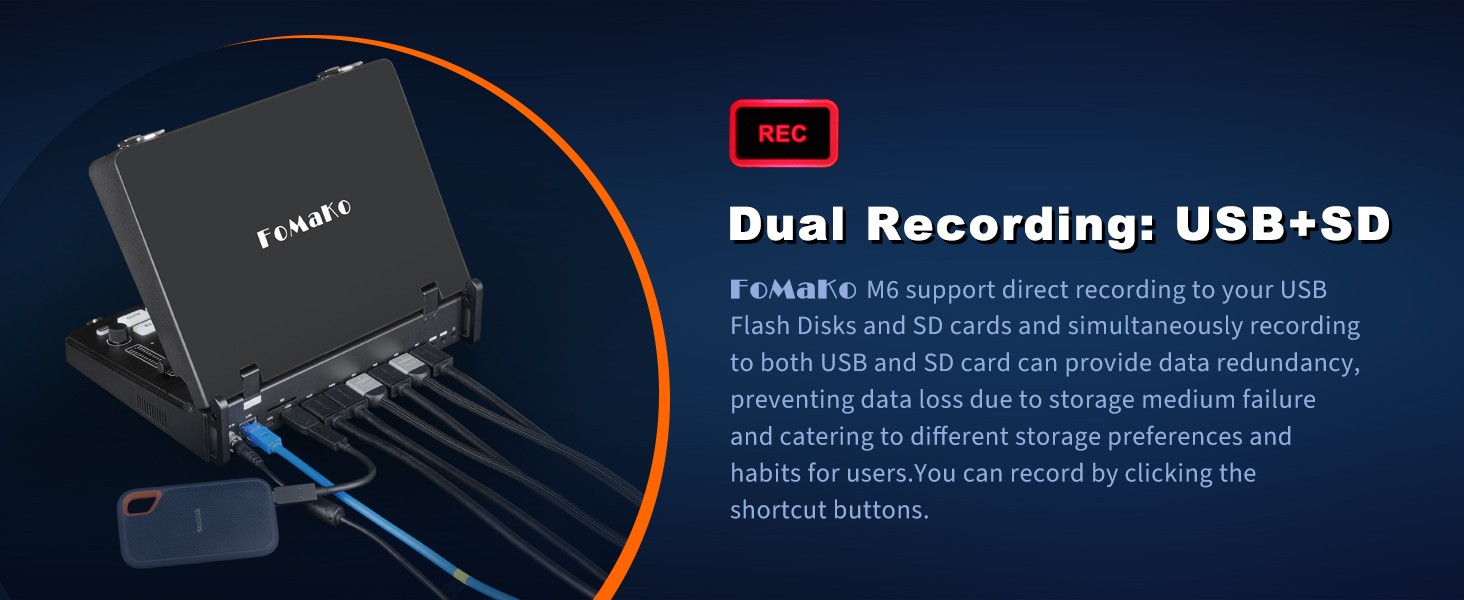

-Advanced Recording and Playback Capabilities: Capture every moment with the dual-card (USB and SD card) high-definition recording and playback feature. Thid ensures that your content is stored safely and can be accessed quickly for review or editing. The built-in media library further enhances your workflow by allowing you to store efficiently.
-User-Friendly Interface and Software Integration: The intuitive interface and built-in media library allow for quick access and seamless use of media resources,streaming your production process. M5 is compatible with live streaming software for all kinds of social media platforms like Youtube, Vmix, Obs and more. This all-in-one switcher provides the tools you need to deliver high-quality content with ease.
-Creative Effects: 8-layer graphics processing with 30 transitions and features like Luma key, Chroma key, PIP and LOGO overlays enable professional and dynamic content creation.
-3-Year Limited Warranty - Shop with confidence. 30-Day No-Questions-Asked Money-Back Guarantee - Risk-free purchase. Free Online Training - Get started easily. 24/7 Expert Assistance - Responses within 24 hours (please include your Order ID). Enjoy our lifetime customer technical support. Your satisfaction is our priority, we have got you covered!
Share:
Product introductionTech SpecPackagingDownload

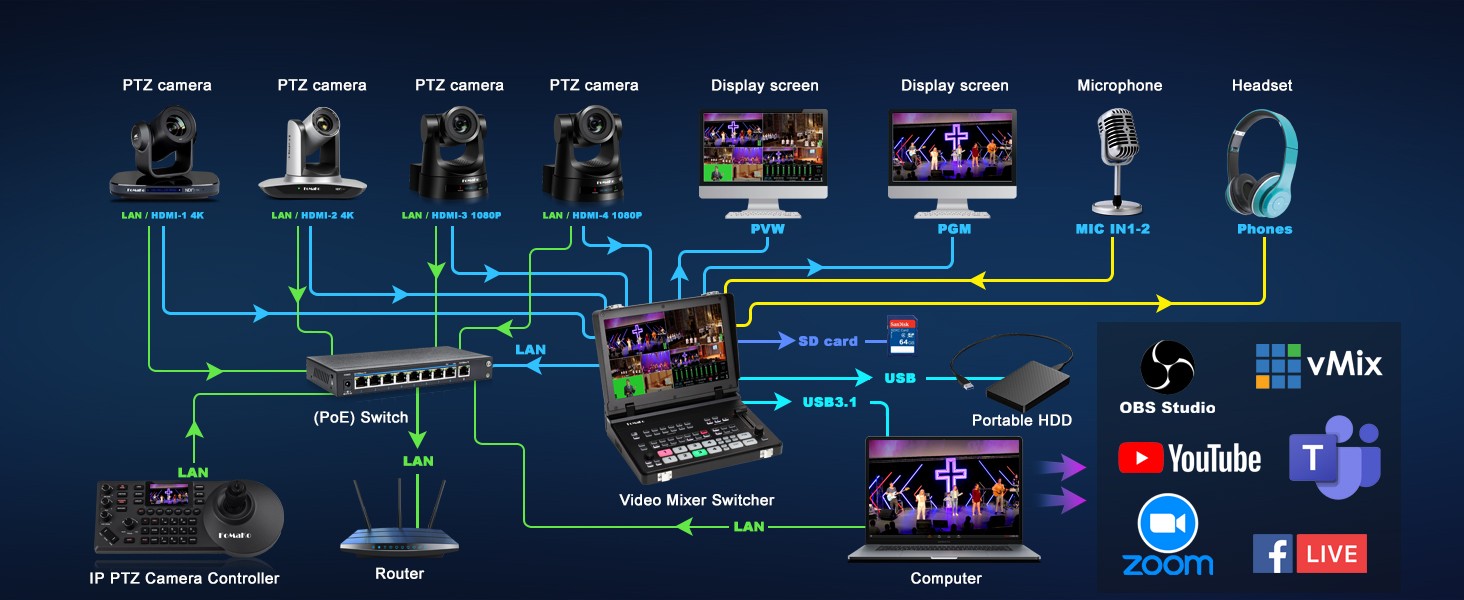

FoMaKo M5 Connection Diagram


Parameters

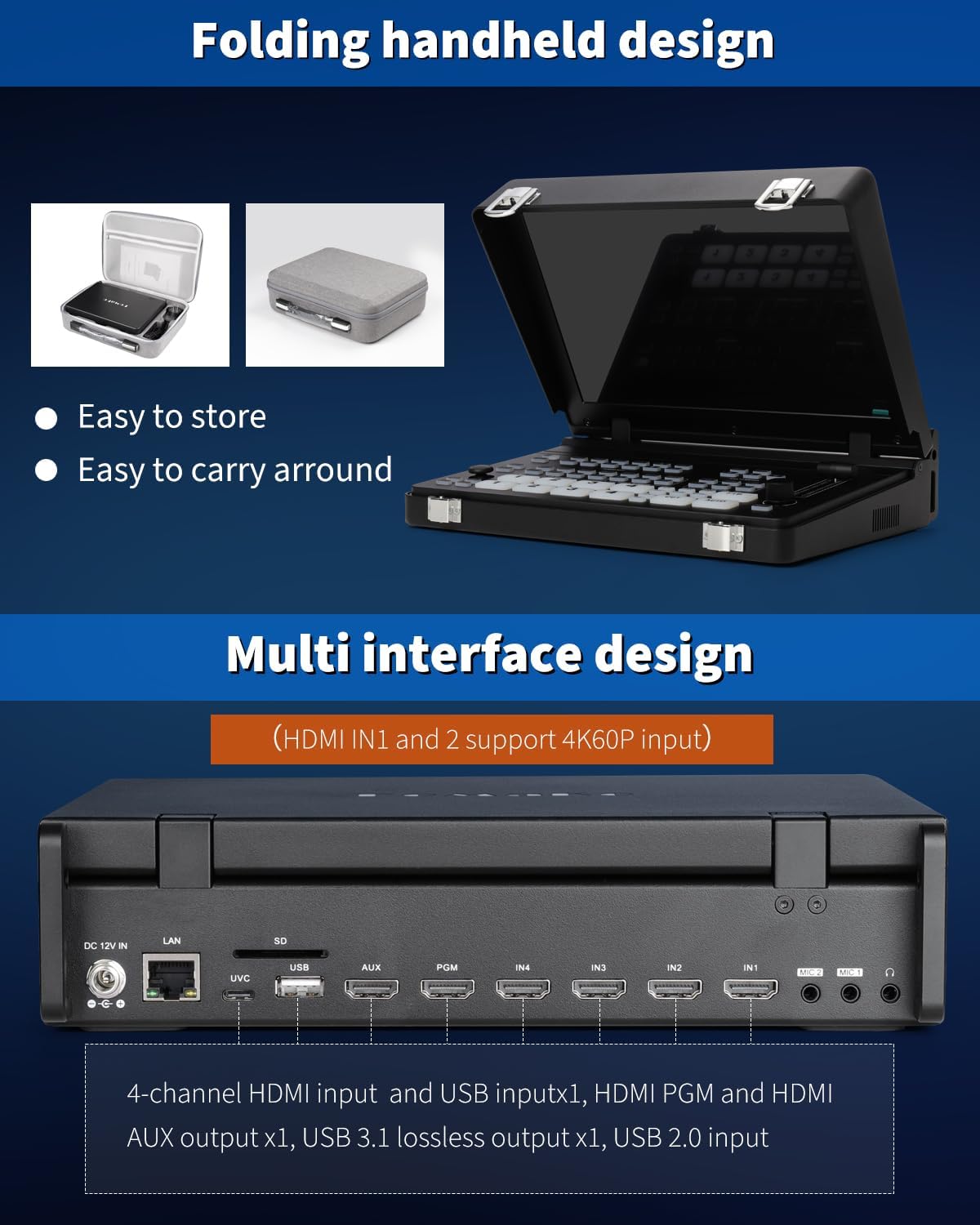

Video Input

HDMI INx4   SDI INx4    USBx1

Video Output

HDMI  PGMx1+HDMNI AUXx1+USB  3. 1x1  Type-C  and RJ45x1Network Streaming

Audio Input

Line(3.5mm Stereo)x2

Audio Output

Line(3.5mm Stereo)x1

USB

Used for video encoding storage, camera, LOGO image, firmware upgrade, etc.

Control Port

LAN x 1 For network streaming, PTZ camera control, software control

SD Card

Video recording storage

Power

DC 7~ 12V ≤18.5W

Functions

Transition

T-Bar/AUTO/ CUT

Transition Effects

WIPEVarious patterns/MIX/DIP/Transition Preview/BKGD/Still (Freeze)/FTB

Key

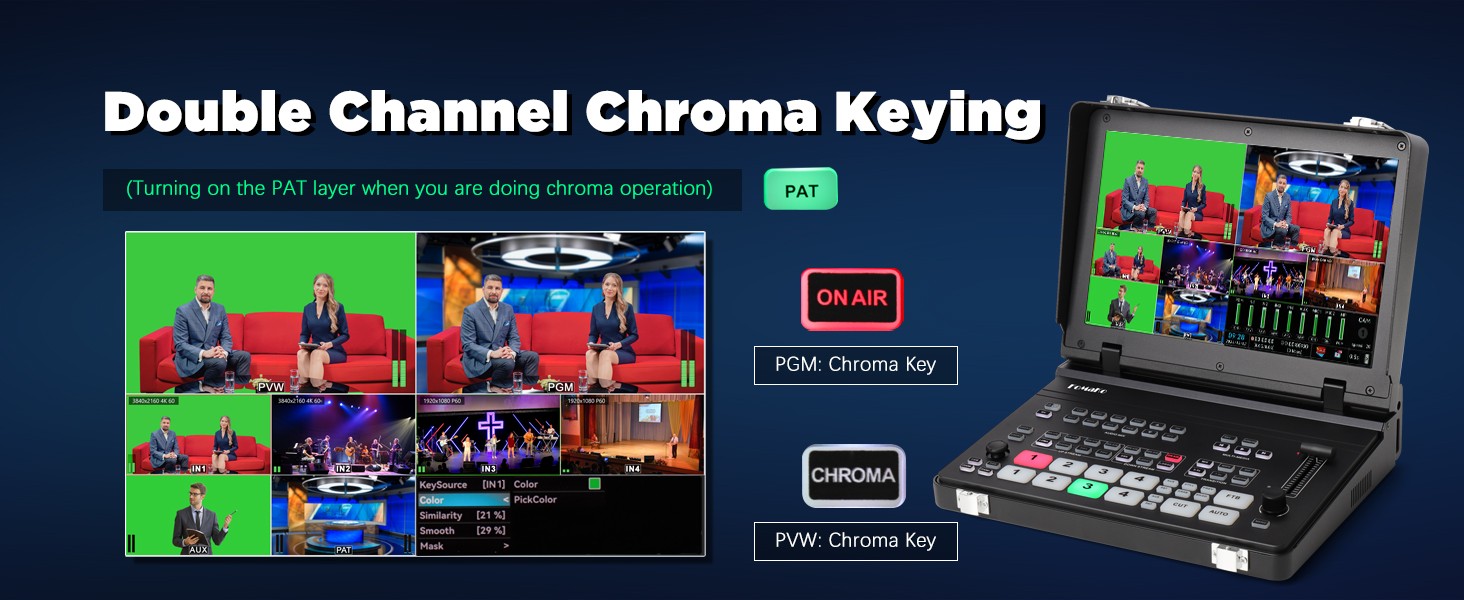

Upstream KeyChroma keyx1/Luma keyx1/PIPx2

Downstream keyDSKx1/LOGOx2

Layers

PGM Support up to 8 layers

Audio

HDMI x 4 SDIx 4Multimedia and 2-way microphone/analog audio input; Audio delay: 0-1s

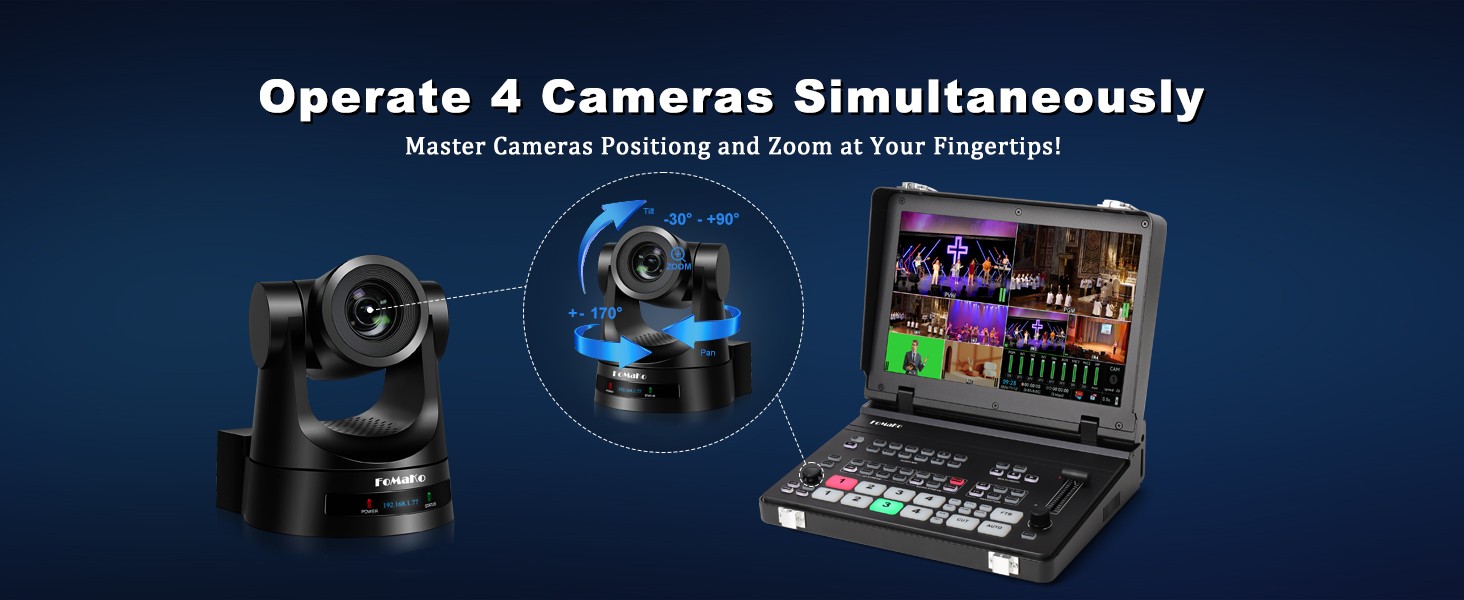

PTZ

VISCA IP protocol

Media Library

Supports presetting of multiple background images,logos and video streams

Streaming

H.264 Encoding, supports recording and multi-network streaming, supports recording and streaming bit rate    separation

LOGO

Any   size   (up   to   960x540)   and   position,   support   alpha transparent channel (png images)

Format Support

HDMI Input Support

2160p 60/59.94/50/30/29.97/25/24/23.98HDMI2.0 input 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i50/1080i60

HDMI PGM Output

1080p 60/50/48/30/25/24

SDI Input Support

3G Level AYCbCr422 10bitSDI version

SDI PGM Output

1080p 60/50/48/30/25/24SDI version

HDMI Color Space

RGB/YUV

UVC Output

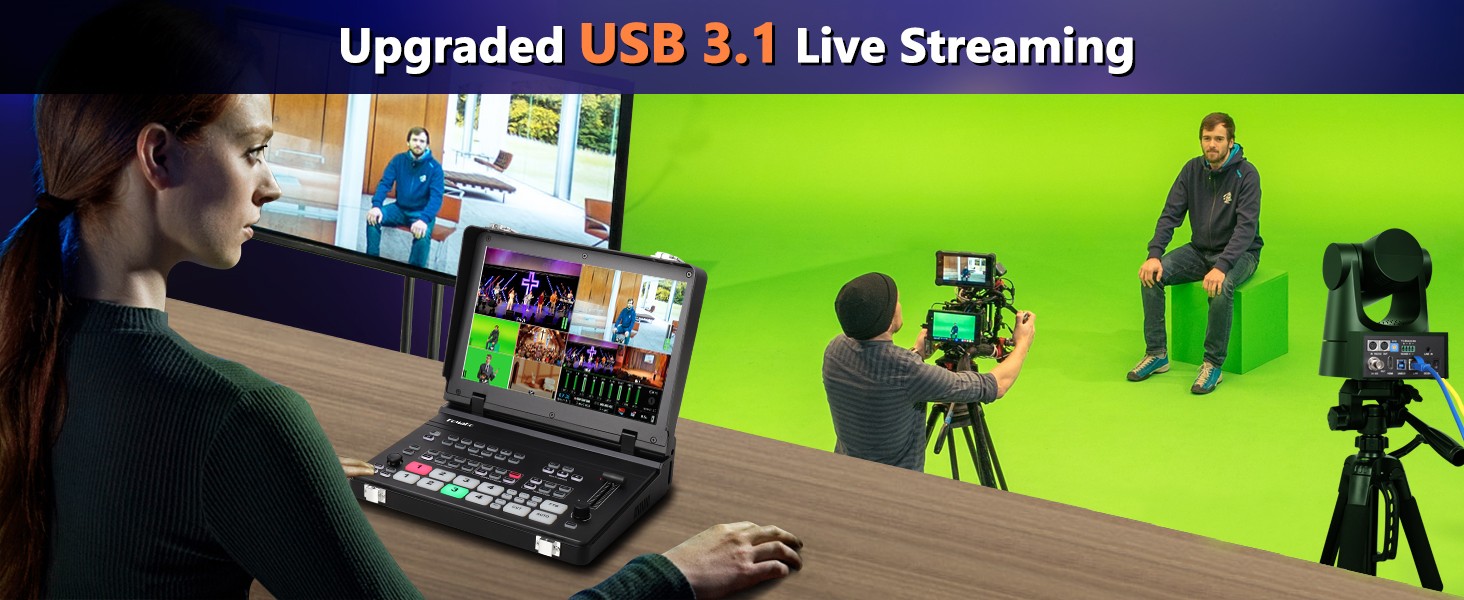

USB 3.1 Lossless output, Maximum support YUV2 1080p60

Data Stream Support

1080p 60/59.94/50/30/29.97/25/24/23.98

Others

Power

7~24V

Power Consumption

≤18.5W

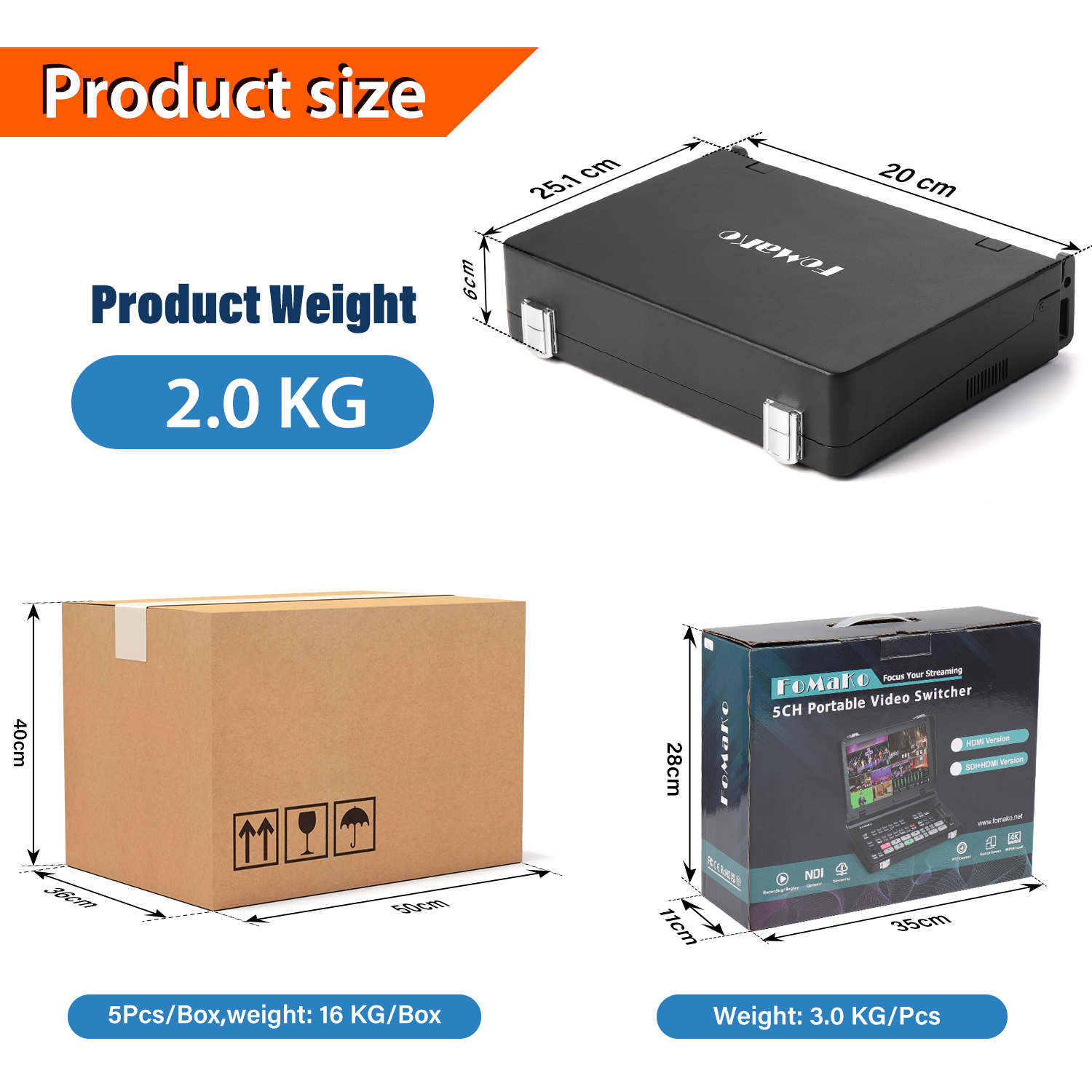

Size (LDW)

250*206*63mm

Weight

2. 1kg

Temperature

Working Temp: 0~50, Storage Temp. : -30~70



Accessories

DC Adapter( 12V 2A)*1 USB Cable(A to C)*1   Suitcase* 1Optional
