FoMaKo HDMI PTZ Camera 20X Optical Zoom, HDMI Live Streaming Camera USB PTZ Camera to YouTube, Facebook HDMI 1080P 60FPS for vMix OBS (12x/20X PTZ Camera)
USB and HDMI PTZ Conference Room Camera: Delivers professional video quality to a conference room or event space.Brilliantly sharp video resolution and outstanding color reproduction.
Product introductionTech SpecPackagingDownload

    FoMaKo 20x-HDMI PTZ Camera, video camera with hdmi output for Church & Worship Live Streaming, easy streaming to YouTube, Facebook and More.
    Compatible with Zoom and skype for business as the conferencing software.Support windows xp ,MAC, Android system.
    USB PTZ Camera. Output video to USB and HDMI at the same time. SONY 1/2.8” Progressive CMOS. 1080P HD video, 20X Optical Zoom. Compatible with Sony Visca Protocol and Pelco P / D protocol.
    USB/HDMI Plug and play ,easy to connect it with your Windows PC, Mac, Google Chromebook or smart TV. Intuitive remote: Easily control camera pan, tilt, zoom and more
    30 Day money back guaranty for No reason. Repair for 18 Monthes.

Camera Parameter
Optical Zoom20x Optical Zoom.12x Optical Zoom.
focal lengthf=4.7mm(W)~94.0 mm(T)f=3.9mm(W)~46.8 mm(T)
View Angle(FOV)58.7°(W)~3.2°(T)72.5°(W)~7.4°(T)
Effective Pixels3.5 Megapixels3.1 Megapixels
Sensor1/2.8 inch high quality HD CMOS sensor
Video Format1080p60/50,1080p30/25,1080i60/50,720p60/50
Optional (Can be customized) :1080p59.94,1080p29.97,1080i59.94
Minimum Illumination0.1 Lux
White BalanceAuto/Indoor/Outdoor/Manual
Focus ModeAuto/Manual
Exposure ModeAuto/Manual
Image EffectFull color/image flip
White BalanceAuto/Indoor/Outdoor/Manual
Input/Output Interface

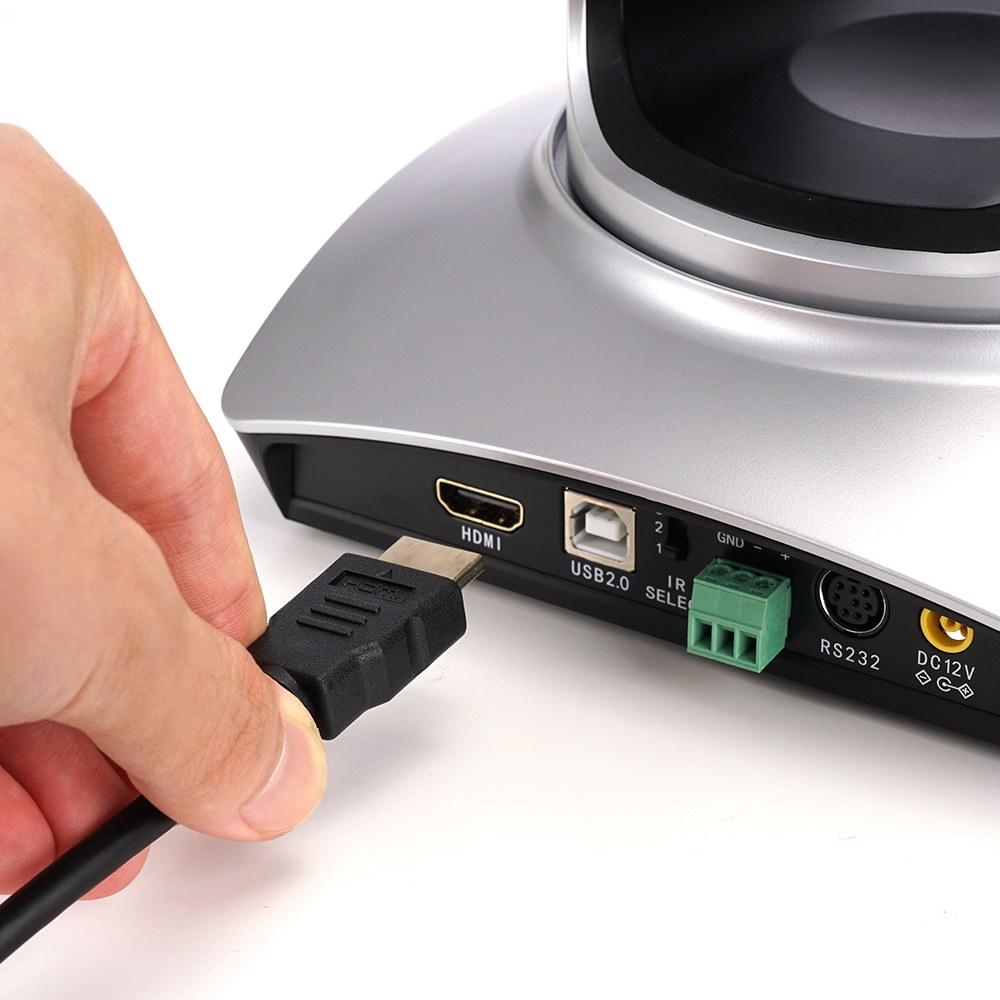

Video InterfacesHDMI, USB 2.0, RS485,RS232,
Video OutputHDMI, USB 2.0
Control InterfaceRS485,RS232,
Control ProtocolSONY VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps
Power Supply12V DC(10.8~13.0V DC)
Input VoltageDC12V±10%
Input CurrentMaximum: 1A
Power ConsumptionMaximum: 12W
PTZ Parameter
Pan/Tilt RotationPAN: ±177°   Tilt:  -30°~+90°
Pan Control Speedmax.speed:80°/sec
Tilt Control Speedmax.speed:60°/sec
Preset Accuracy±0.1°
Preset Number255 presets (10 presets via remote control)
Other Parameter
Stored Temperature-10℃~+60℃
Stored Humidity20%~95%
Working Temperature-10℃~+50℃
Working Humidity20%~80%
Product Dimension160mm×160mm×185mm
Product Weight1.1KG


Packing List1x FoMaKo HDMI PTZ Camera
1x Remote Control
1x Ceiling Bracket
1x Wall Mount Bracket
1x Power Adapter
1x RS232 Cable
1x 5m(16.4ft) USB Cable
1x 3m(9.8ft) HDMI Cable
1x User manual
Some Screws
Single product packingDimension 30*25*24CM  weight: 3.5KG
Outer packing boxPackage specification: 4pcs/box, Dimension 50*32*53CM Gross weight: 16KG
Installation MethodSupport desktop, wall mount, ceiling mount and tripod installation.
