| Technical Specifications | |
| Operating System | Android 10 |

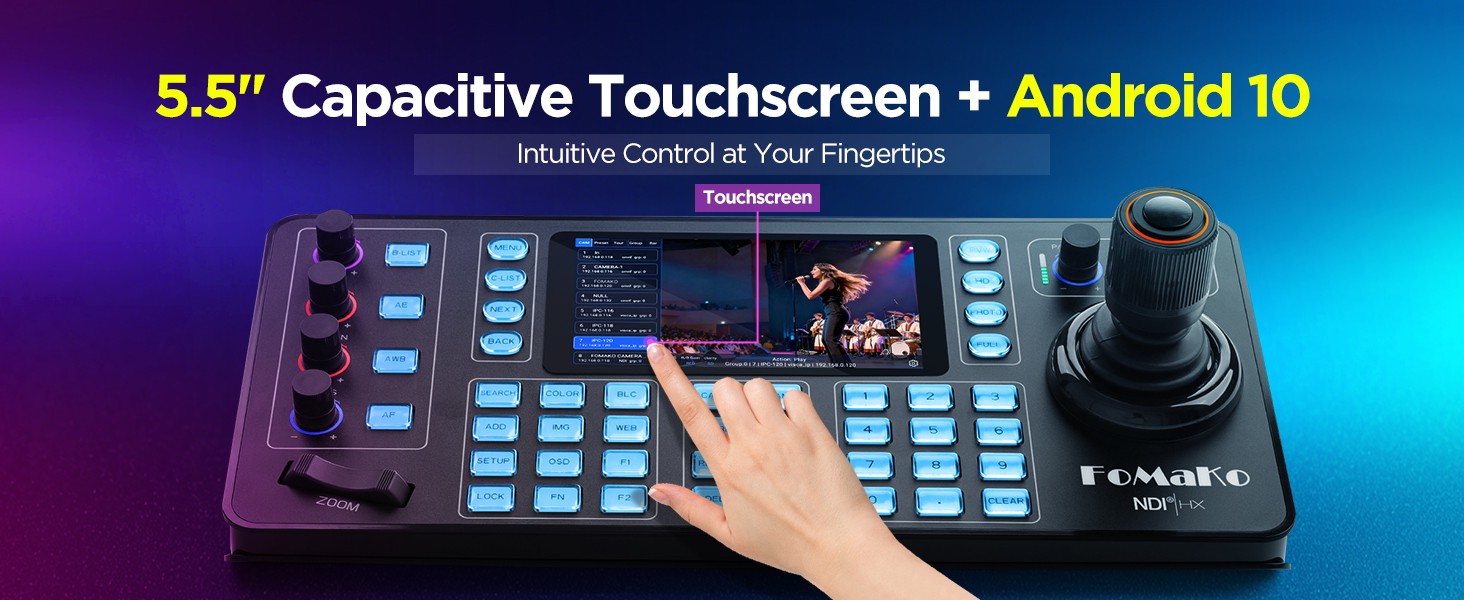

| Screen Size | 5.5” capacitive touchscreen / resolution 1280x720 |
| Decoding | 1. Supports H264/H265 2. Max supported H264/H265:1x1080p@60fps 3. Max supported H264/H265:1x4K@30fps |
| Protocols | ONVIF,VISCA-IP,VISCA, Pelco-P, Pelco-D, NDI HX |
| Power | Standard 5.5/2.1 power interface, DC 12V2A+10% |

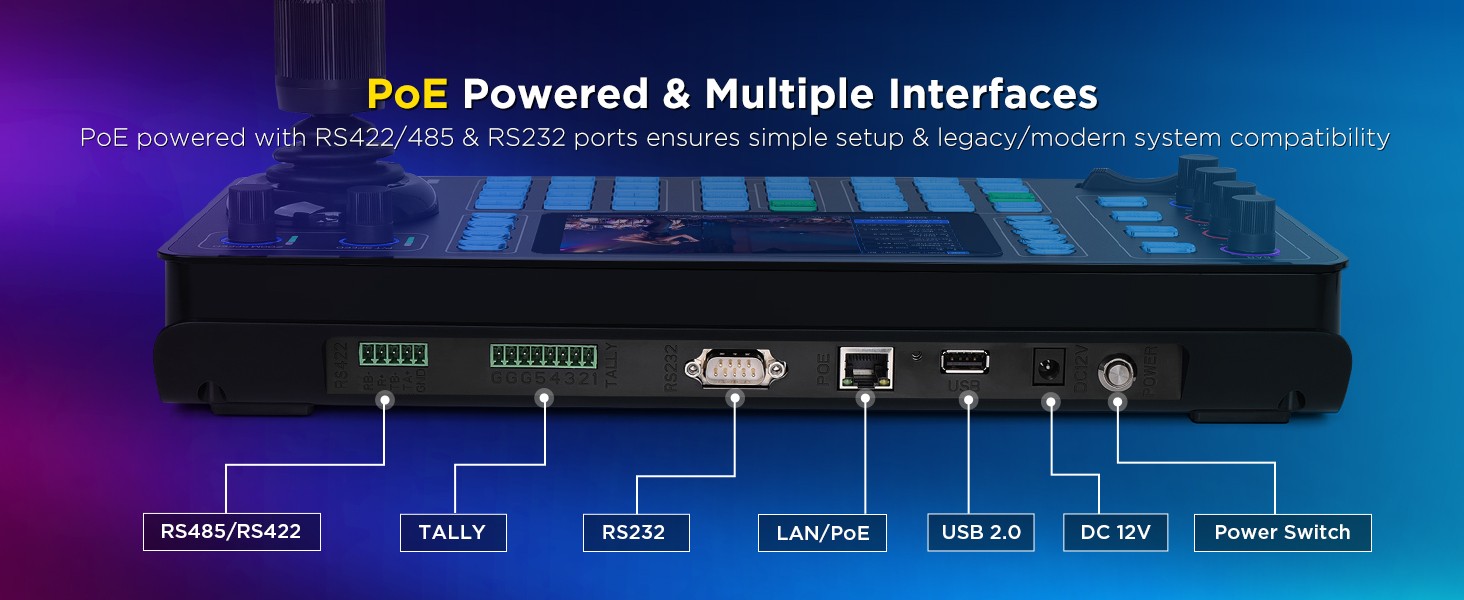

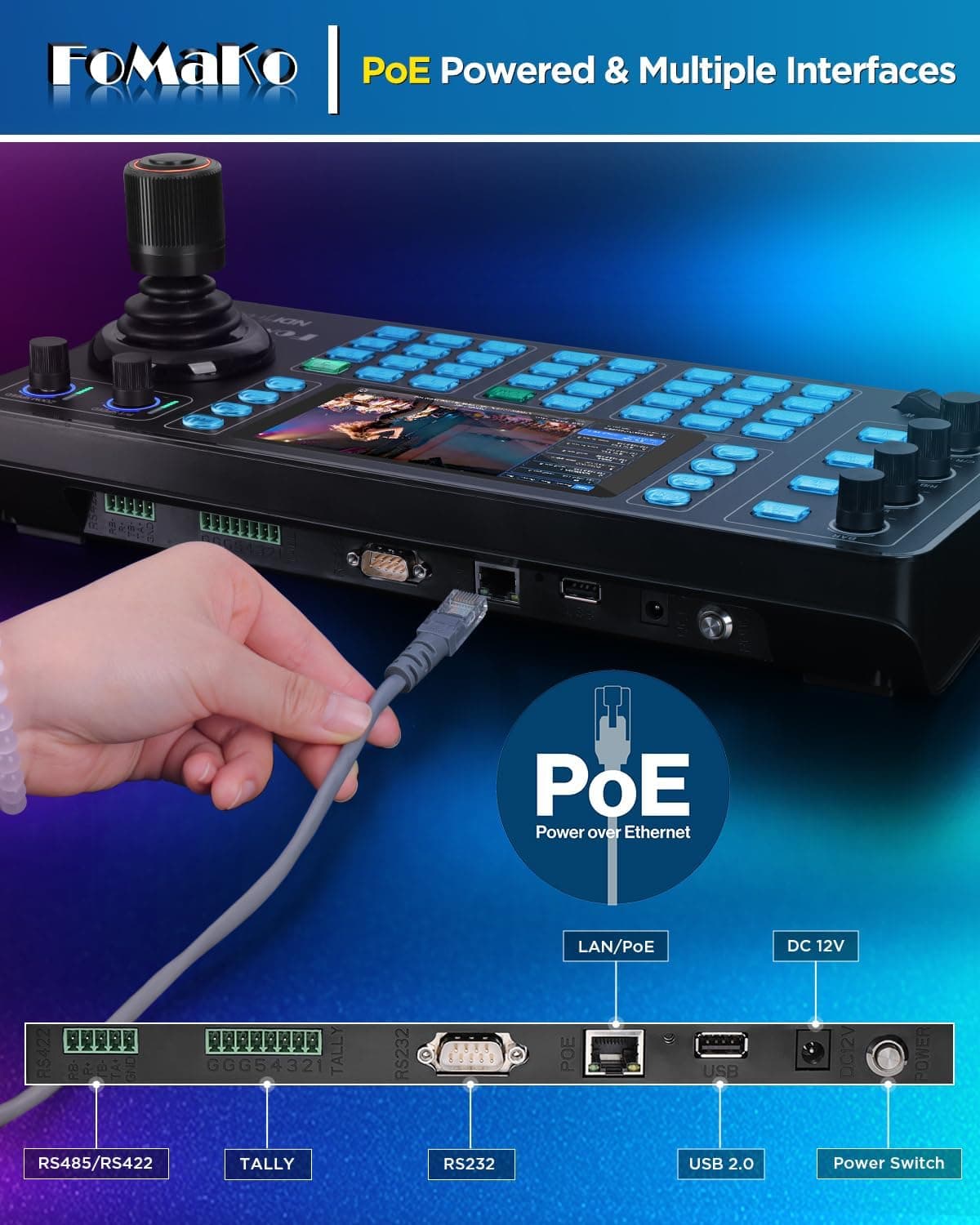

| Interface Ports | 1. 1x RJ45 (POE) 2. 1x RS485/RS422 3. 1x RS232 4. 1x USB-HOST/OTG 2.0 5. 1x TALLY(8PIN) |
| Mechanical Specifications | |
| Power Consumption | <1.5W |
| Working Humidity | 10%-90% RH(no frost) |
| Working Temperature | -10°C-50°C |
| Storage Temperature | -40°C-60°C |

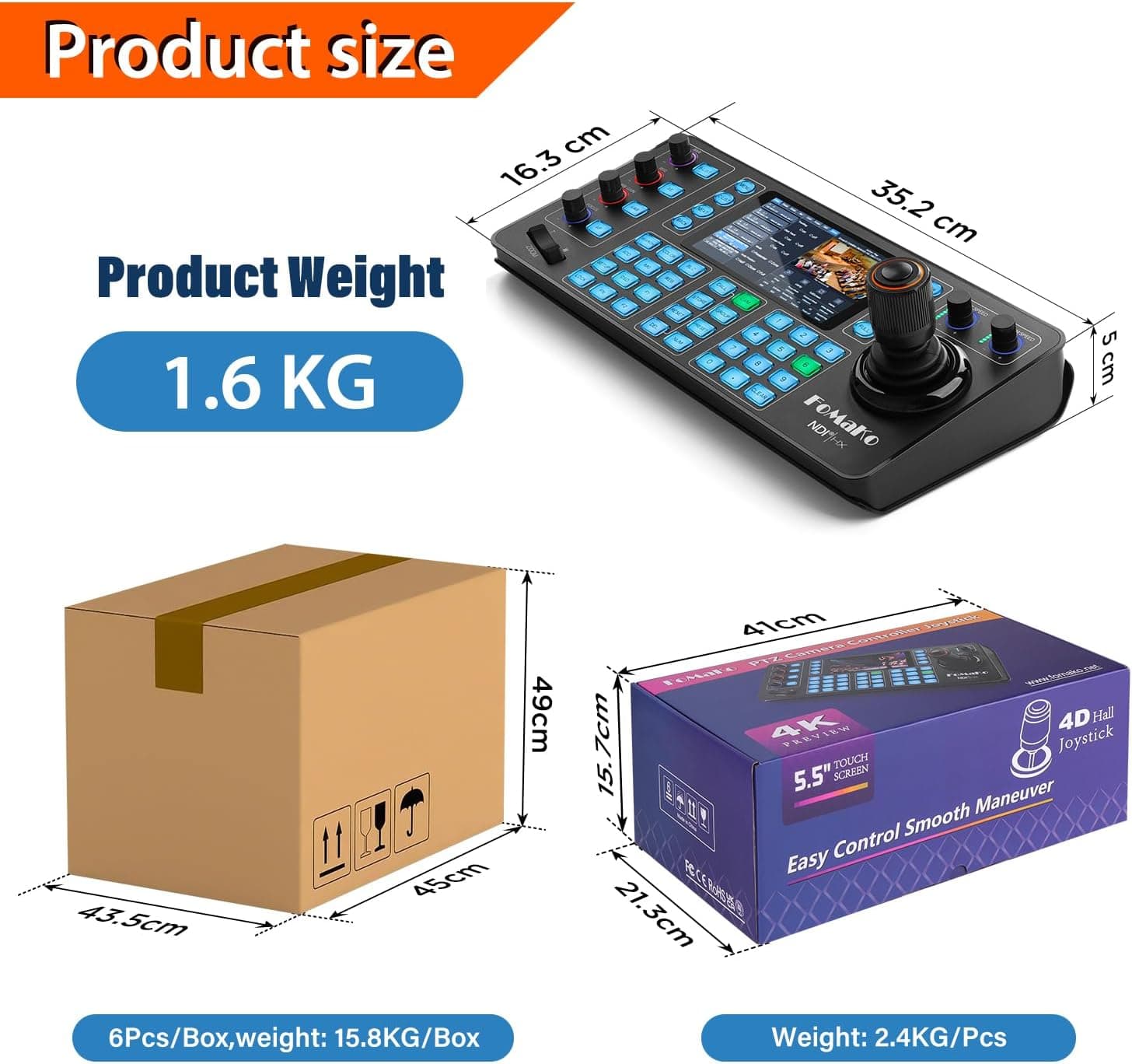

| Dimensions | (W*L*H) 351.8*163*112.5 mm |
| Weight | 1.63 kg |
