Model | 12X | 20X |
Parameters | ||
Image Sensor | 1/2.8 inch high quality HD CMOS sensor | |
Effective Pixel | 8.42M, 16: 9 | |
Video Format | HDMI: 3840*2160/1920*1080P60/59.94/50/30/29.97/25; 1280*720P60/59.94/50 SDI: 1920*1080P60/59.94/50/30/29.97/25; 1920*1080I60/50/59.94; 1280*720P60/59.94/ 50 USB: YUY2/NV12: 1920*1080/1280*720/1024*576/800*600/800*448/640*480/ 640*360/480*270/320*180P30/25/20/15/10/5fps H264/H265/MJPG: 3840*2160/1920*1080/1600*896/1280*720/1024*576/960*540/ 800*600/800*448/720*576/720*480/640*480/640*360/480*270/ 352*288/320*240@60/30/25/20/15/10/5fps LAN: Main Stream: H264/H265: 3840*2160/2592*1944/2304*1296/1920*1080/1280*720@60/30/25/20/15/10/ 5fps; Sub Stream: H264/H265: 1920*1080/1280*720/640*360/640*480/320*240/320*180@60/30/25/20/15/ 10/5fps; | |
Optical Lens | 12X f=4. 1~49.2mm | 20X f=5.05~91.49mm |
Viewing Angle | 6.72°( T) 70.4°( W) | 3.81°( T ) 60.04°( W) |
Aperture Ratio | F1.8 – F2.68 | F1.8 – F2.9 |
Digital Zoom | 16 X | |
Minimum Illumination | 0.5Lux(F1.8, AGC ON) | |
DNR | 2D &3D | |
White Balance | Auto/Manual/One push/Specified Color Temperature (2400K-7100K, adjustable in 100K steps) | |
Focus | Auto/Manual/One-push | |
Iris | Auto/Manual | |
Electronic Shutter | Auto/Manual | |
BLC(Backlight Compensation) | On/Off | |
Dynamic Range | Off/ Dynamic level adjustment | |
Video Adjustment | Brightness, Contrast, Sharpness, Horizontal Flip, Vertical Flip, Black and White Mode, Gamma Curve, Electronic Zoom, DCI, Ultra Low Light Mode | |
SNR | >50dB | |
Interface | ||

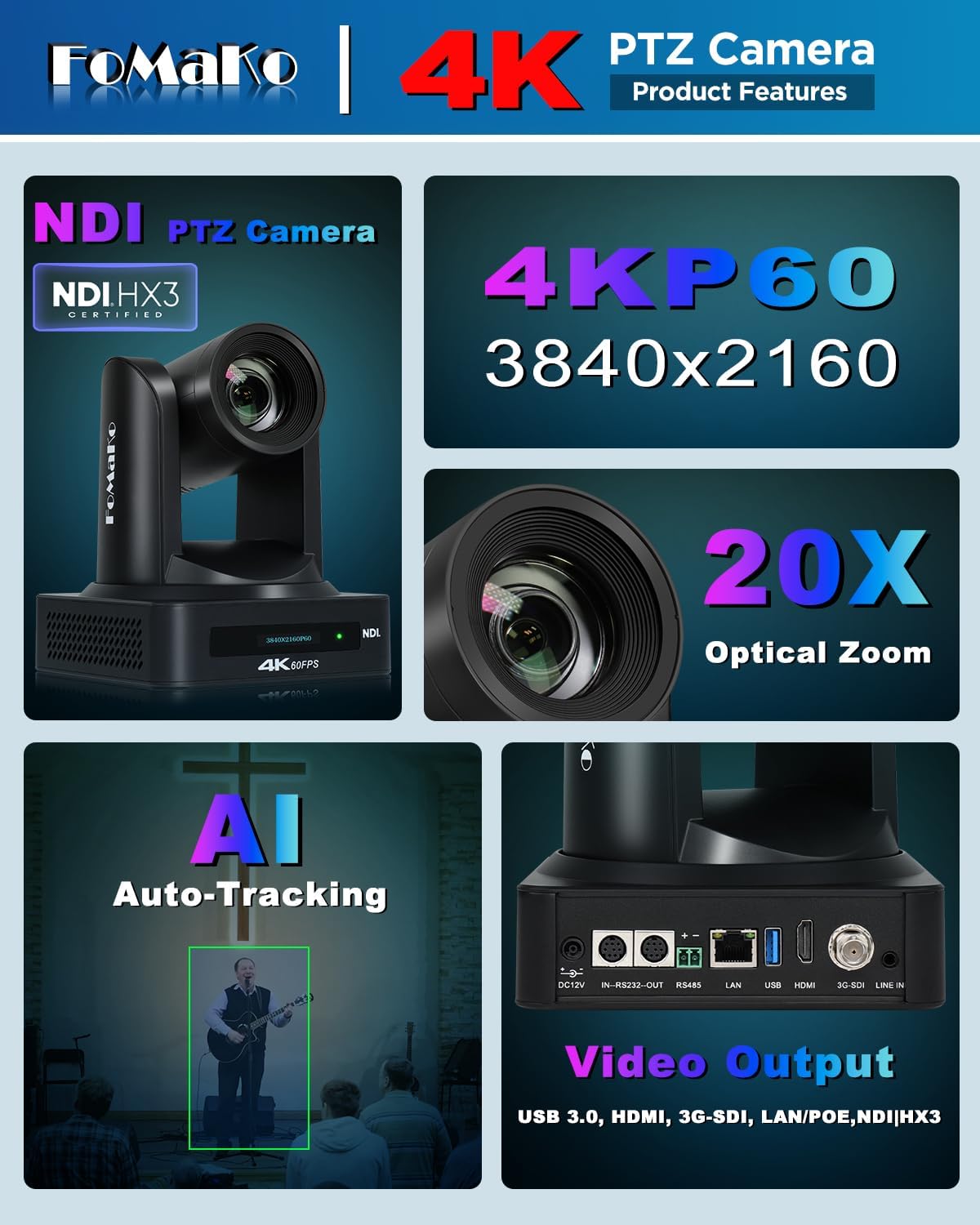

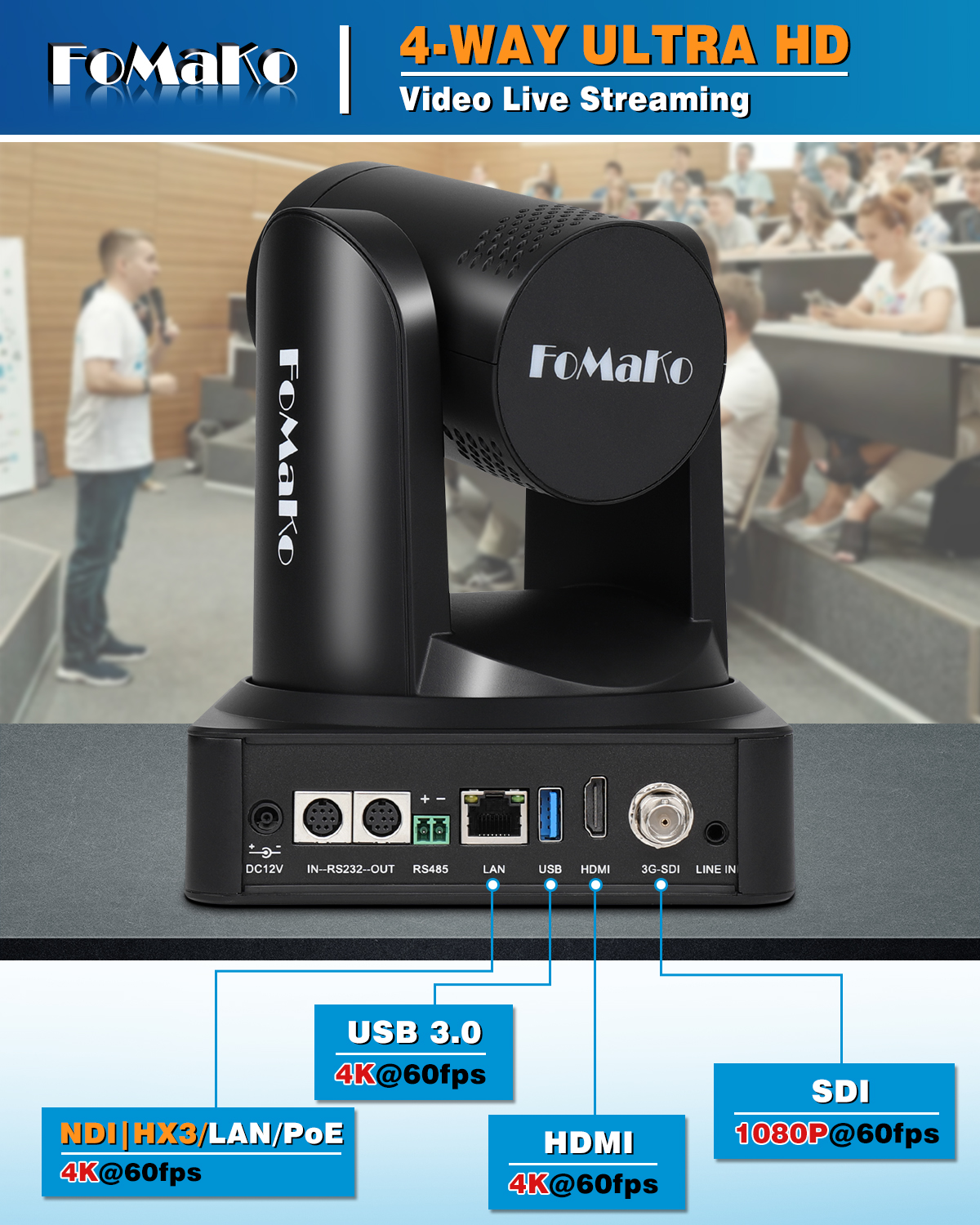

Interface | HDMI, SDI, LAN(POE+ support), USB3.0, A-IN, RS232-IN, RS232-OUT, RS485, DC12V power supply | |
Video output | HDMI, SDI, LAN, USB3.0 | |
Video compression formats | LAN:H.265, H.264 USB 3.0:MJPG,H.264,H.265,YUY2,NV12 | |
Video Bitrate | 64-40960 | |
Bitrate Control | Fixed Bitrate, Variable Bitrate | |
Frequency | 50Hz: 1fps ~ 50fps 60Hz: 1fps ~ 60fps | |
Audio Input | Dual audio channel 3.5mm linear input | |
Audio Output | HDMI, LAN, USB 3.0, SDI | |
Audio Bitrate | 32Kbps, 48Kbps, 64Kbps, 96Kbps, 128Kbps | |
Audio Compression Format | AAC, G.711A | |

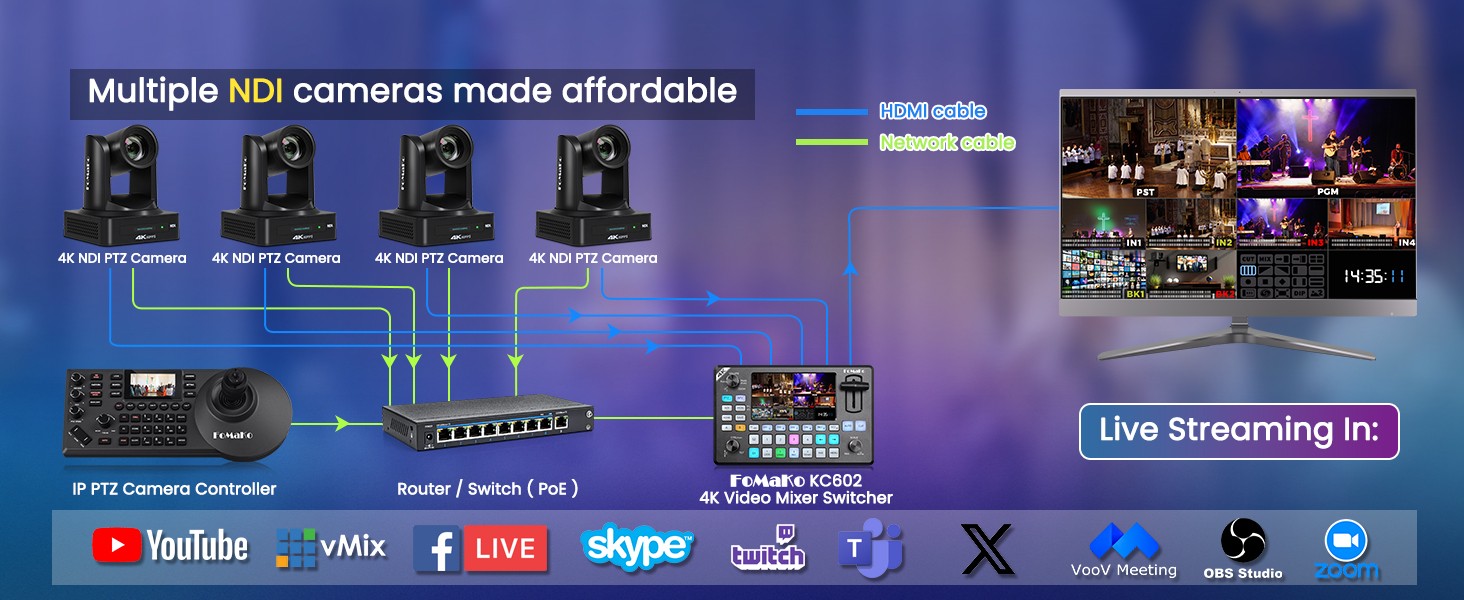

Network Interface | 1000M Ethernet port, optional POE+ power supply, supports audio and video output ; The Default is DHCP | |
Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, SRT; NDI supports network VISCA control protocol ; supports remote upgrade, remote reboot, and remote reset | |
Control Interface | RS232-IN, RS232-OUT, RS485 | |
Serial Communication Protocol | VISCA/Pelco-D/Pelco-P; supports baud rates of 115200/38400/9600/4800/2400 | |
USB Communication Protocol | UVC (Video Communication Protocol), UAC (Audio Communication Protocol) | |
Power Interface | HEC3800 power socket (DC12V) | |
Power Adapter | Input: AC110V-AC220V Output: DC12V/2A | |
Input Voltage | DC12V±10% | |
Input Currency | ≤1.5A | |
Power Consumption | ≤18W | |
PTZ | ||
Pan | -170° ~ +170° | |
Tilt | -30° ~ +90° | |
Pan Speed | 0. 1° ~ 60°/s | |
Tilt Speed | 0. 1° ~ 30°/s | |
Preset Speed | Pan:60°/s, Tilt:30°/s | |
Preset Quantity | User can set 255 presets (10 via IR remote control) | |

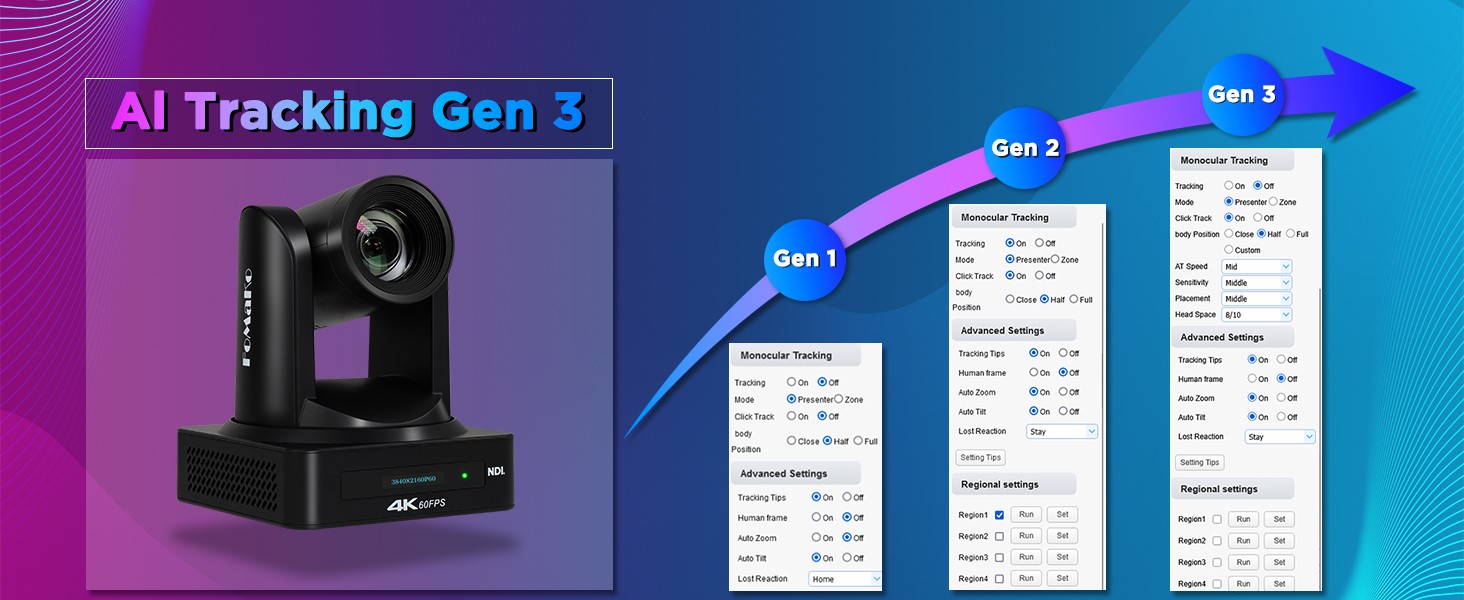

Monocular Tracking | ||

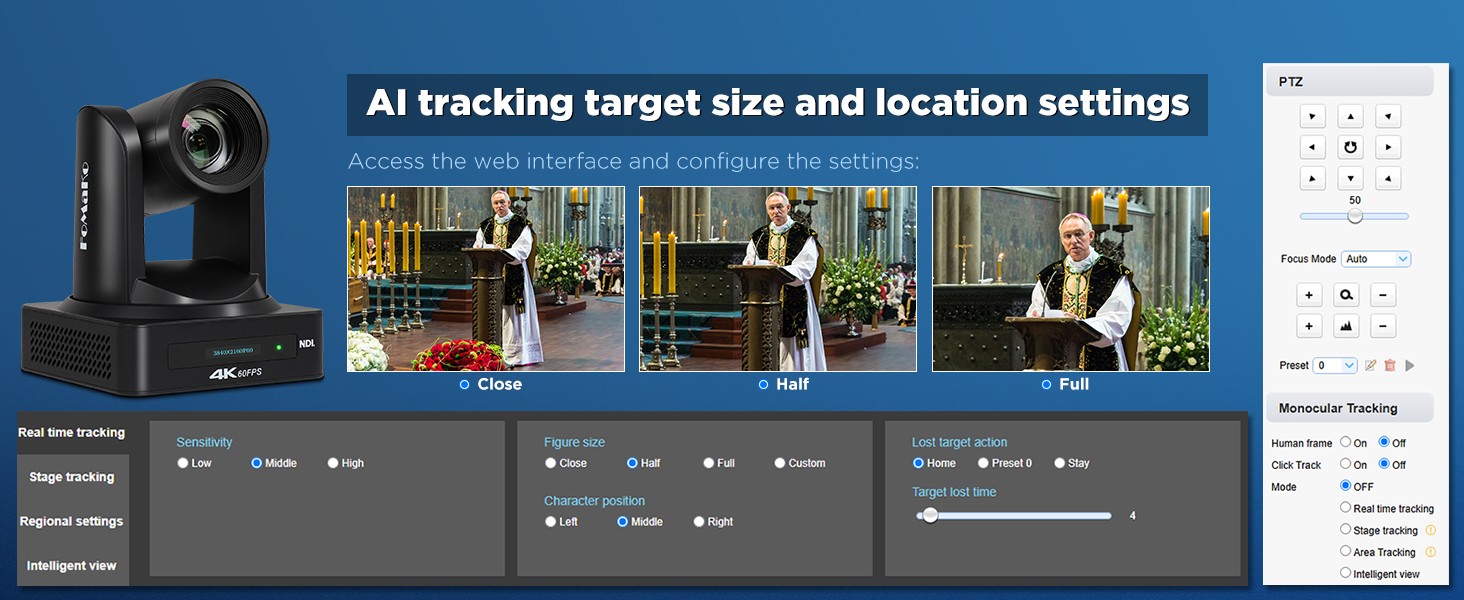

Tracking Modes | Off, Real-time Tracking, Stage Tracking, Area Tracking, and Intelligent Framing | |
Tracking Distance | Maximum tracking distance up to 18 meters | |
Others | ||
Storage Temperature | -10℃ ~ +70℃ | |
Storage Humidity | 20% ~ 95% | |
Working Temperature | -10℃ ~ +50℃ | |
Working Humidity | 20% ~ 80% | |
Dimension | 150mm*150mm*167.5mm | |
Weight | 1.4kg | |
Environment | Indoors |
