K820N
4K 60FPS, NDI PTZ Camera,AI PTZ Camera,20X optical zoom
FoMaKo 4K NDI Camera 60FPS 20X Optical Zoom, AI Auto-Tracking NDI PTZ Camera, USB3.0 3G-SDI HDMI 4K PTZ Camera for Church Worship Education Conference Events, 4K HDR Camera (K820N NDI Camera Black)
Share:
Product introductionTech SpecPackagingDownload

    FoMaKo 4K PTZ Camera. Supports HDMI 2.0 interface and Output 4K (3840x2160) at 60fps Uncompressed Ultra High Definition Video, Made for Church Services, house of Worship, Teaching and Education, Broadcast, High-Tech Conference, Summit Forum, Events.


    NDI PTZ Camera. NDI | HX2 Support (NDI License Included, Officially Approved by Newtek Inc). Low latency. Support plug and play, which is convenient for project implementation and deployment. Compatible with blackmagic and IP PTZ Camera controller, Compatible with vMix/OBS and other Live Video Streaming Software, Multi-cameras video production for live streaming to YouTube and facebook.


    AI PTZ Camera with Auto-Tracking. Support human shape tracking based on advanced AI algorithm, simply press F3 on the remote control to enter automatic tracking and Press the left / right keys to switch between different tracking character objects.

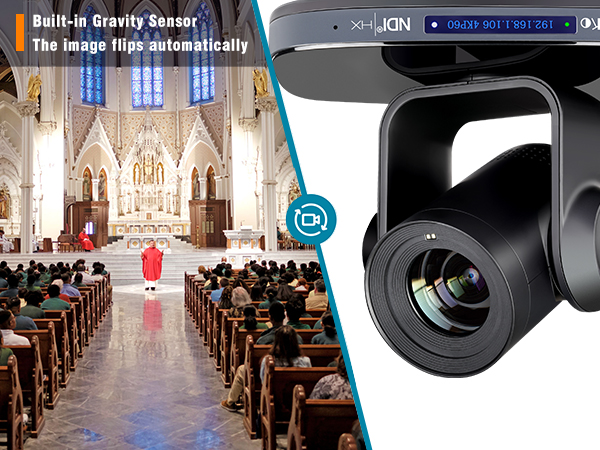

    20X optical zoom PTZ Camera and the maximum field angle is 60 degree(FOV). Built-in gravity sensor and supports the automatic image flip function. The PoE (Power over Ethernet) feature allows you to only bring up a a single network cable to power, control and stream video/audio when using LAN slot.


Simultaneous NDI/LAN, USB3.0, HDMI 2.0 ,  and Simultaneous NDI/LAN, USB3.0,   3G-SDI


four channels video output. HDMI: 4KP60, 4KP59.94, 4KP50,4KP30,1080P60 etc. USB3.0: 4KP30,1080P60 etc. LAN:4KP60,1080P60, etc. 3G-SDI: 1080P60,1080P59.94,1080P50 etc. supports broadcast rate and covered 1080P, 720P resolutions.



Camera
Signal SystemHDMI: 4KP25, 4KP30, 4KP50, 4KP60, 4KP59.94,
4KP29.97, 1080P25,
1080P30, 1080P50, 1080P60,
1080P59.94, 1080P29.97,
1080I50, 1080I60,
1080I59.94, 720P50,
720P59.94, 720P60
3G-SDI: 1080P25, 1080P30,
1080P50, 1080P60,
1080P59.94, 1080P29.97,
1080I50, 1080I60,
1080I59.94, 720P50,
720P59.94, 720P60
Sensor1/1.8 inch, CMOS, Effective pixels: 8.42M
Scanning ModeProgressive
Lens20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95
Digital Zoom16x
Minimum Illumination0.5 Lux @ (F1.8, AGC ON)
Shutter1/30s ~ 1/10000s
White BalanceAuto, Indoor, Outdoor, One Push, Manual, VAR
Backlight CompensationSupport
Digital Noise Reduction3D Digital Noise Reduction
SNR≥55dB
Horizontal FOV60° ~ 3.5°
Vertical FOV35.7° ~ 2.0°
Pan Angle±170°
Tilt Angle-30° ~ +90°
Pan Speed1.8°/s ~ 80°/s
Tilt Speed1.5°/s ~ 49°/s
H & V FlipSupport
Image FreezeSupport
PoE+Support
Preset Position255
Preset Accuracy0.1°
USB Features
Operate SystemWindows 7/8/10, Mac OS X, Linux, Android
Color System/ Compression   USB 3.0 (Optional): YUY2/H.264/H.265/MJPEG
   USB 2.0:
H.264/H.265/MJPEG
Video Format   YUY2: (USB 3.0 support) max to 1080P@30fps
USB 3.0/2.0 support:
   H.264 AVC:
max to 2160P@30fps
   H.265 HEVC:
max to 2160P@30fps
   MJPEG:
max to 2160P@30fps
USB AudioSupport
USB Video ProtocolUVC 1.1 ~ 1.5
UVC PTZSupport
Network Features
Video CompressionH.264/H.265/MJPEG
Video StreamFirst Stream, Second Stream
First Stream Resolution3840x2160, 1920x1080,
1280x720, 1024x576,
720x480, 720x408, 640x480,
640x360
Second Stream Resolution720x480, 720x408, 640x480,
640x360, 480x320, 320x240
Bit Rate ControlCBR, VBR
Frame Rate50Hz: 1fps ~ 50fps 60Hz: 1fps ~ 60fps
Audio CompressionAAC
Audio Bit Rate96Kbps, 128Kbps
ProtocolsNDI®|HX2, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF,
DHCP, SRT, Multicast
Interfaces
HDMI Interface1 x HDMI: Version 2.0
3G-SDI Interface1 x 3G-SDI: BNC type,
800mVp-p, 75Ω. Along to SMPTE 424M standard
LINE IN Interface1 x LINE IN: 3.5mm Audio Interface
Communication Interface1 x RS485: 3pin phoenix port, Max Distance: 1200m, Protocol: VISCA/
Pelco-D/Pelco-P
1 x RS232 IN: 8pin Min DIN,
Max Distance: 30m,
Protocol: VISCA/Pelco-D/ Pelco-P
1 x RS232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use
USB Interface1 x USB: Type-C
LAN(PoE+)
Interface
1 x LAN: 10M/100M/1000M
Adaptive Ethernet Port,
support PoE+
Power JackJEITA type (DC IN 12V)
General Specifications
Tally Indicator1
Power Indicator1
Status Indicator1
Restore Key1
Power Switch1
Input VoltageDC 12V/PoE+(802.3at)
Input CurrentMax. 2A
Operating Temperature0°C ~ 40°C
Storage Temperature-40°C ~ 60°C
Power ConsumptionMax. 18W
Dimension223mm x 163mm x 166mm
Net WeightAbout 1.8Kg




What's in the box

    • FoMaKo 60FPS 4K PTZ Camera

    • IR Remote Controller

    • USB Cable

    • RS232 Cable

    • Power Adapter, User Manual


Product Packing 30*25*25cm(12*10*10 inch)4.3KG(9.5 lb.)
4pcs/box, Box: 61*51*27cm(24*20*11 inch)18.5KG(40 lb)
